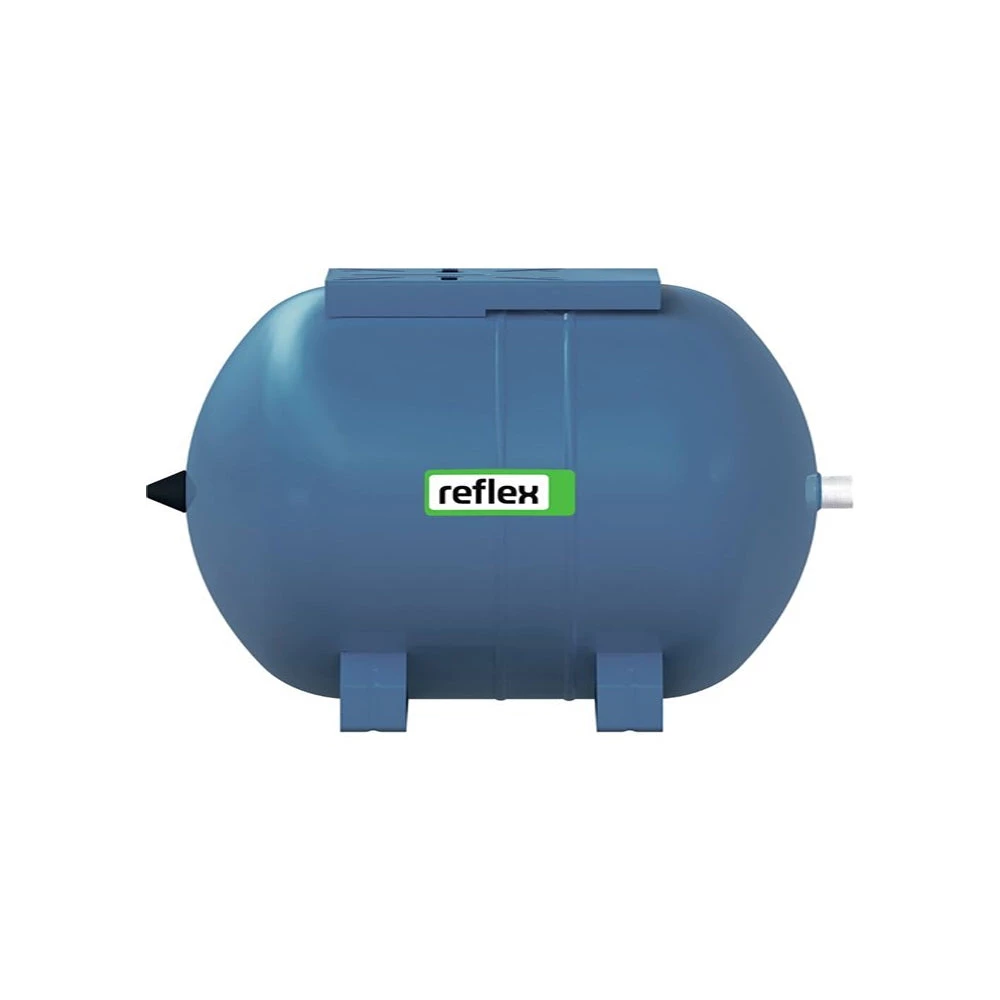

White International Pressure Tanks Reflex Pressure Tank HW Range

Reflex Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

• Nominal volume: 25L
• Nominal Draw-off:9L
• Continuous max. temp 70°C
• Continuous max. pressure: 10 Bar
• Pre-charge: 2 Bar (58PSI)
• Diameter: 280 mm
• Height: 301mm
• Net Weight: 5.5Kg
• System Connection: GI
• Colour: BLUE RAL 5007

Features & Benefits

• Manufactured in EU
• 304 Stainless Steel water connection
• Corrosion resistant for long life
• UV resistant epoxy coating with a minimum thickness of 30 micron in blue RAL5007
• Air valve with sealing cap eliminates leaks
• Food grade approved high-grade butyl membranes and bladders WRAS, ACS,AS/NZS4020
• 5 Year Tank Replacement Guarantee

Applications

• Booster Systems
• Borehole Systems
• Sprinklers
• Irrigation Systems
• HVAC
• Thermal Expansion
• Water hammer arresting

Energy Saving Device

• An energy saving device such as a Reflex Pressure Tank stores energy in the form of pressurized water.
• The energy is transformed by the pump from electricity to water pressure. With a Reflex tank there is no loss of energy once it has been stored in the device.
• By installing a Reflex Tank, the pump start events can be cut by 40 – 80%
• Saving Power
• Extending Pump Life
• Reducing Noise
• Low Initial Cost – The Reflex Tank is easy to fit to pumps and can even be wall mounted, the tank can be installed within minutes and can be fitted to any brand or type of pump.

Materials of Construction
Pressure Tank	Steel
Internal Coating	Yes. Food Grade Approved
Water Connection	Stainless Steel
Air Valve Stem	Brass
Support Legs	Steel Feet (Bolt Down) x 4
Membrane	Food Grade Approved
Bladder	N/A
