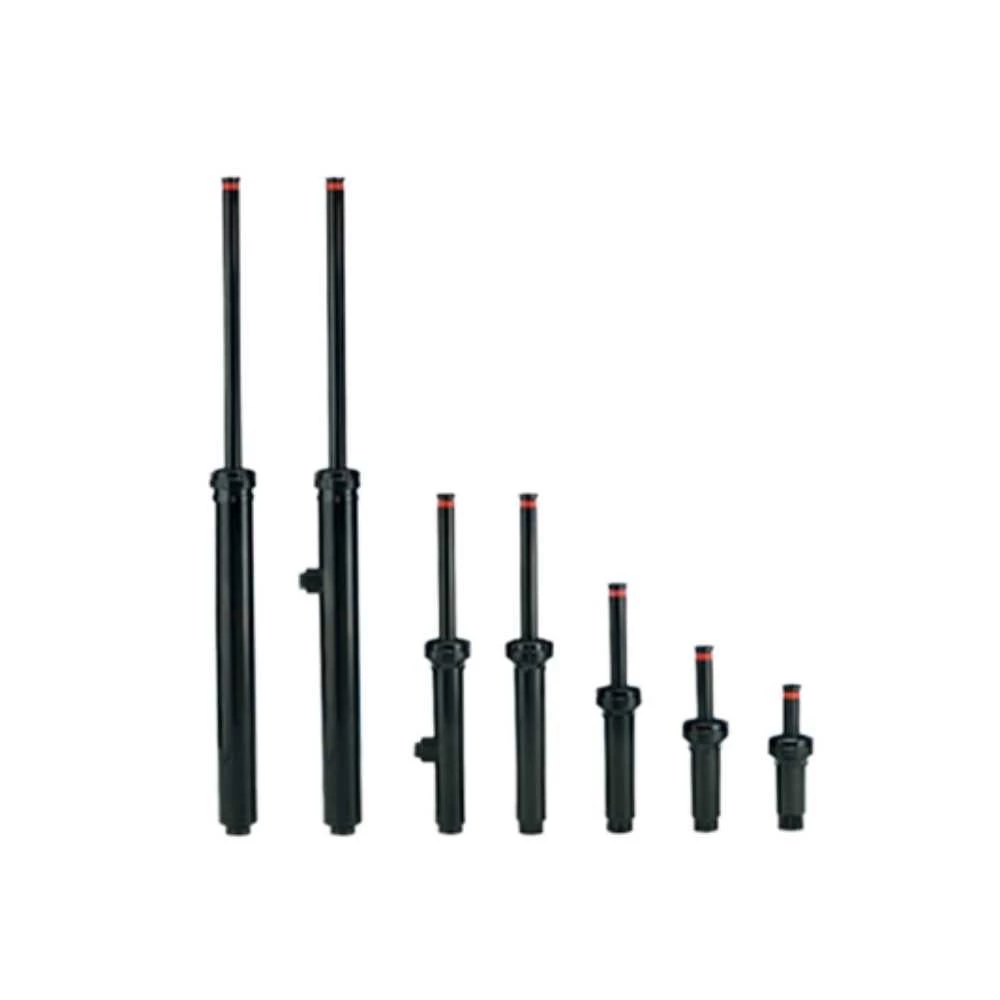

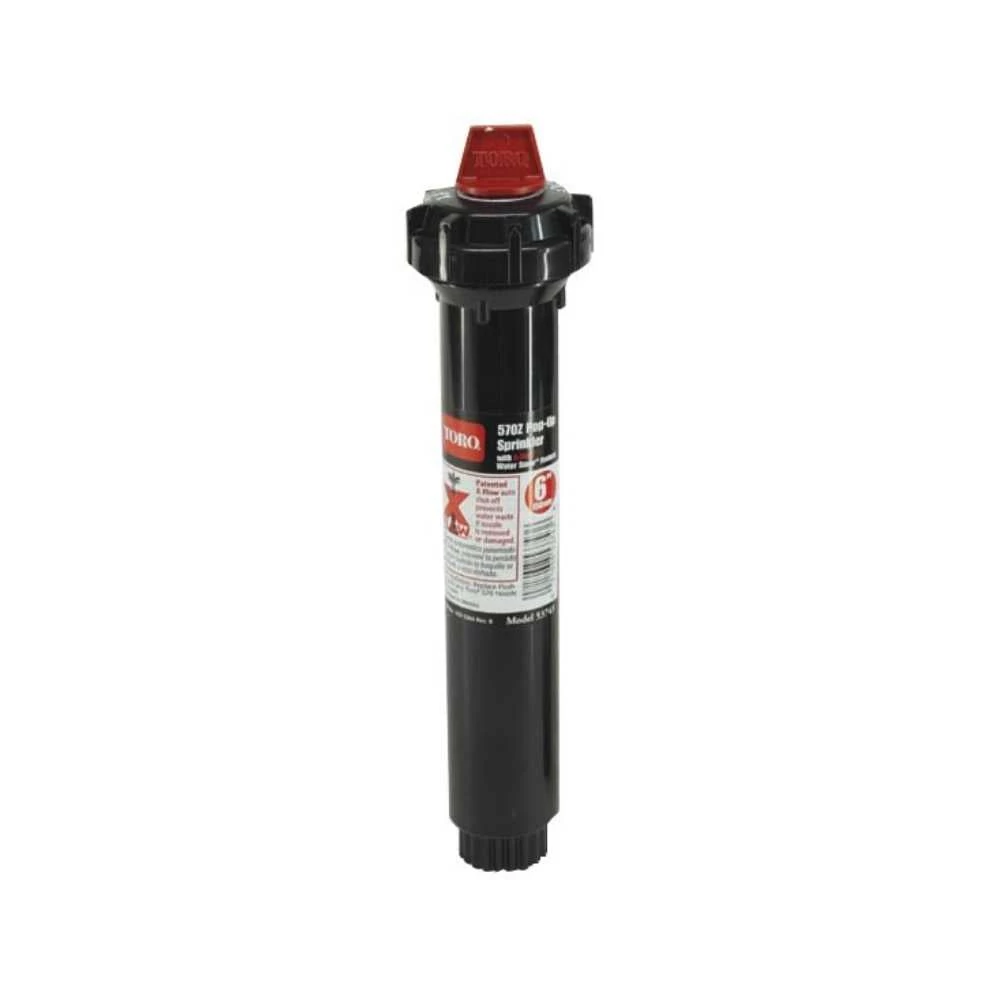

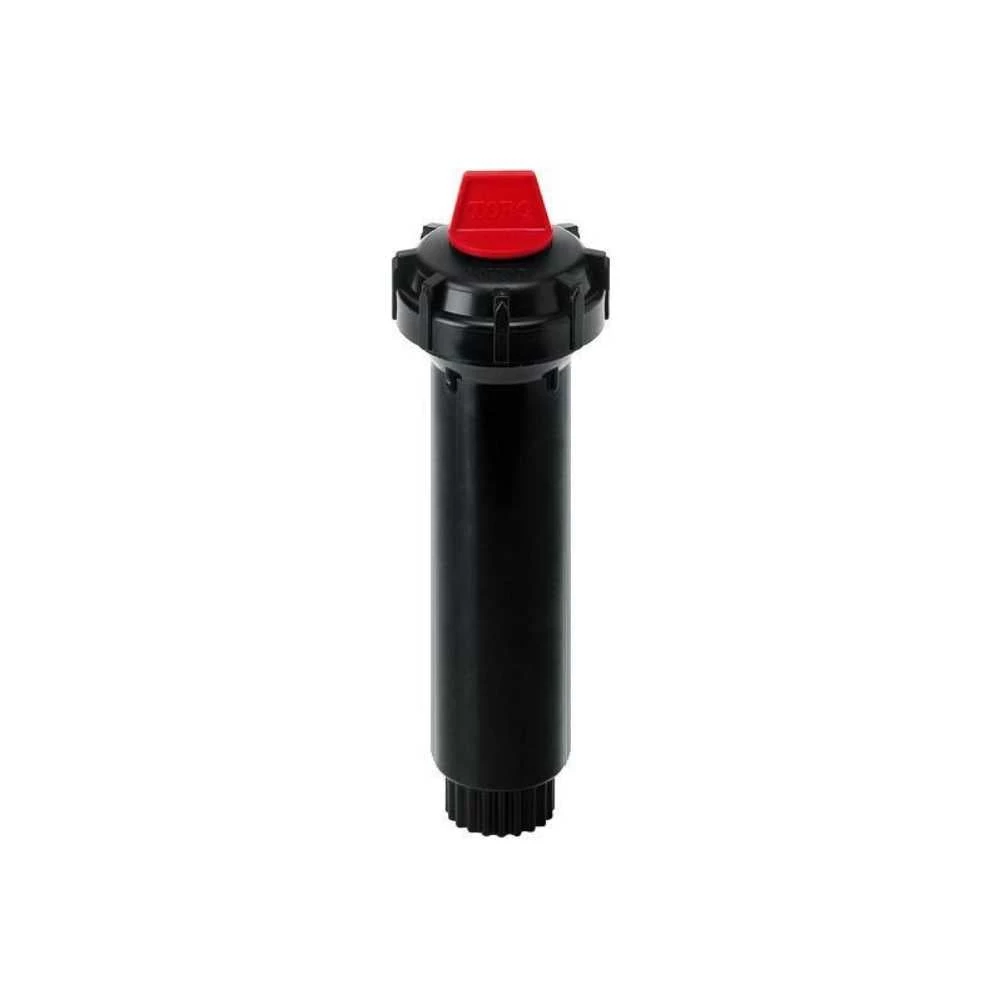

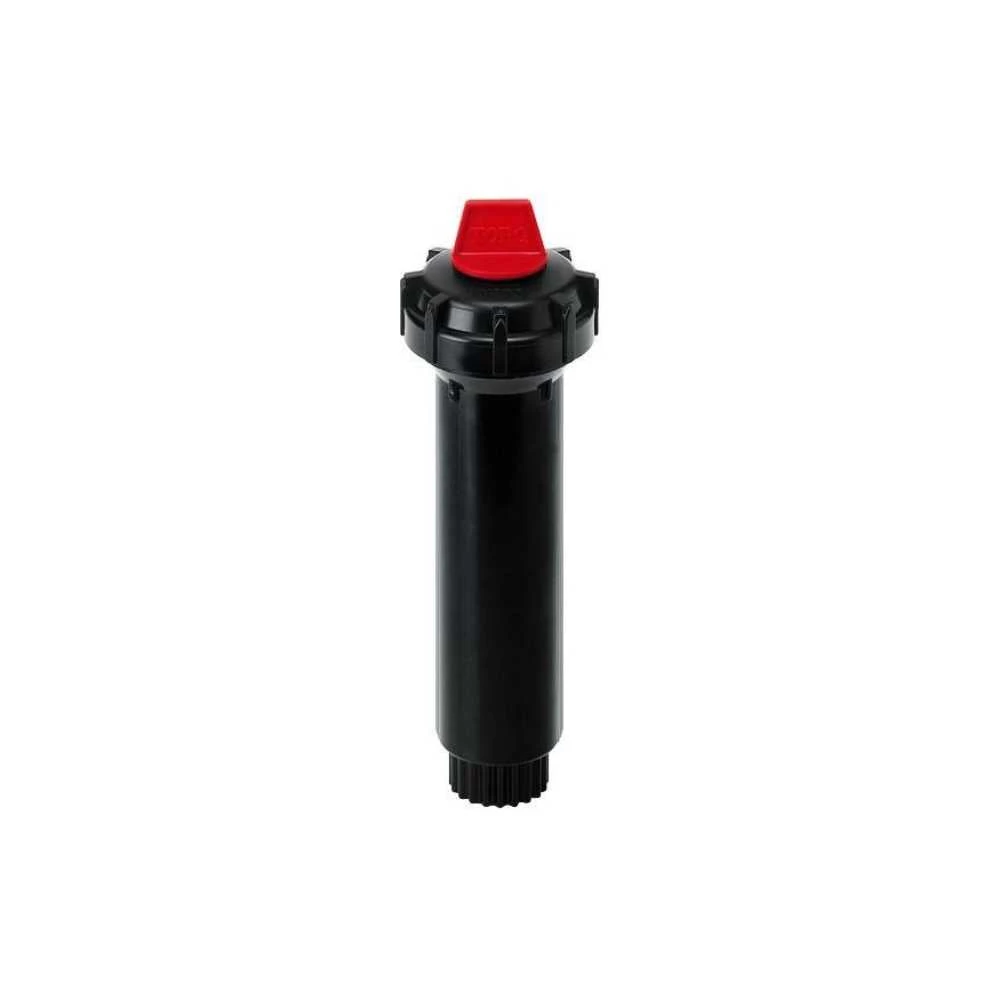

Toro 570Z Pro-Series Pop Up Sprinkler Popup Sprinklers

The Toro 570Z models are ideal for small garden and turf areas. They are compatible with a wide range of nozzles, both fixed and variable arc.

Our range of variable arc nozzles fit all of our 570Z sprinkler bodies, they have an adjustable arc from 0° to 360° and the flow increases or decreases proportionately with radius adjustment.

All of the nozzles are colour coded for easy identification of radius, ranging from 2.4m (8′) up to 5.2m (17′). The nozzles in the Toro 570s provide exceptionally uniform coverage, with an adjustable screw that allows up to 25% radius reduction. All nozzles must be purchased separately.

• Zero flush seal prevents flushing on pop-up, enabling more heads to be placed on same zone
• Low-pressure sealing at 100 kPa
• Retraction flushing clears debris for reliable pop-down
• Accepts all Toro spray nozzles – including 570 MPR Plus fixed, Toro Variable Arc, bubbler, low angle and new Precision series nozzles
• All bodies shipped with a flush plug in place for ease of flushing and riser pull up
• Ratcheting riser permits easy arc adjustment in the field
• Small, 50mm diameter black cap is less visible, reducing damage from exposure or vandals
• Accepts Maxijet® micro-spray nozzles for low-application-rates
• Check valve models (optional) with heavy-duty retraction spring prevent low-head drainage and keep laterals charged with water

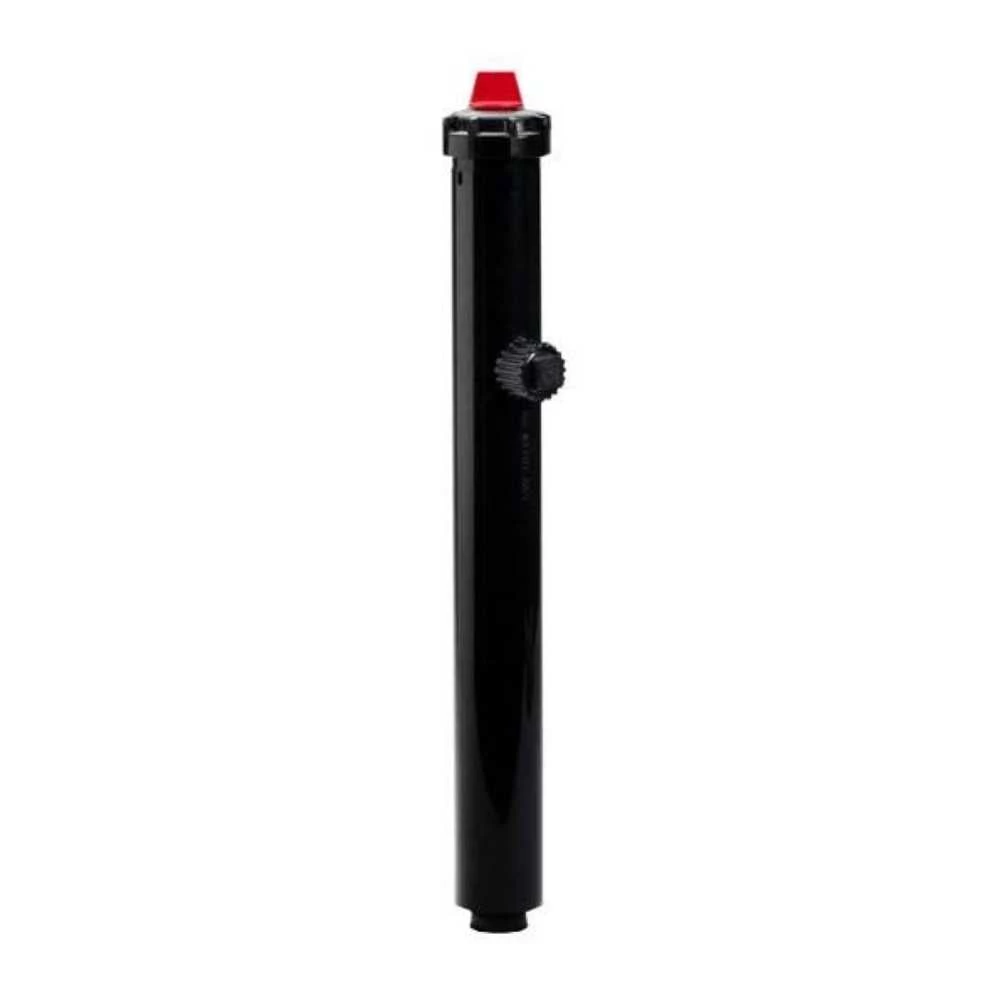

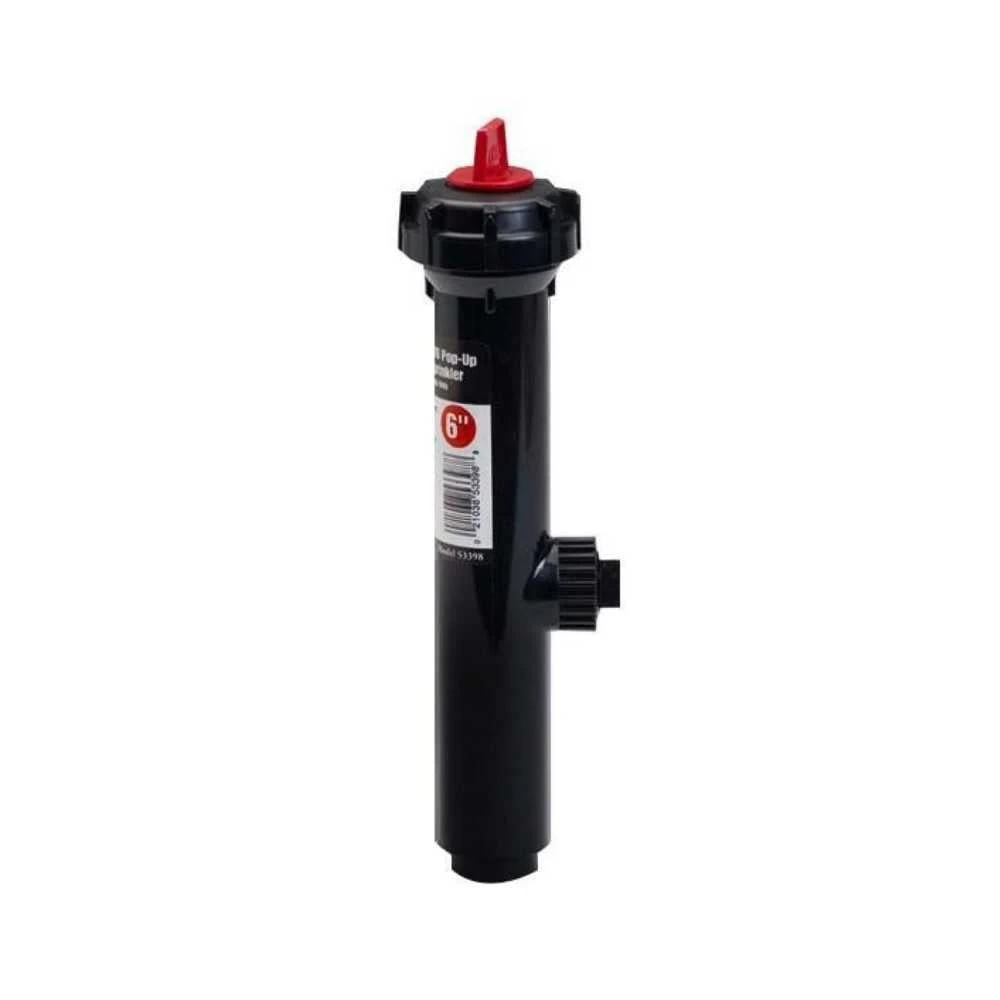

• Side-inlet models available on both 150mm and 300mm sprinkler bodies for sandy soils or applications prone to high pressure surges and spikes
• Durable engineering plastic construction
• Stainless-steel retraction spring
