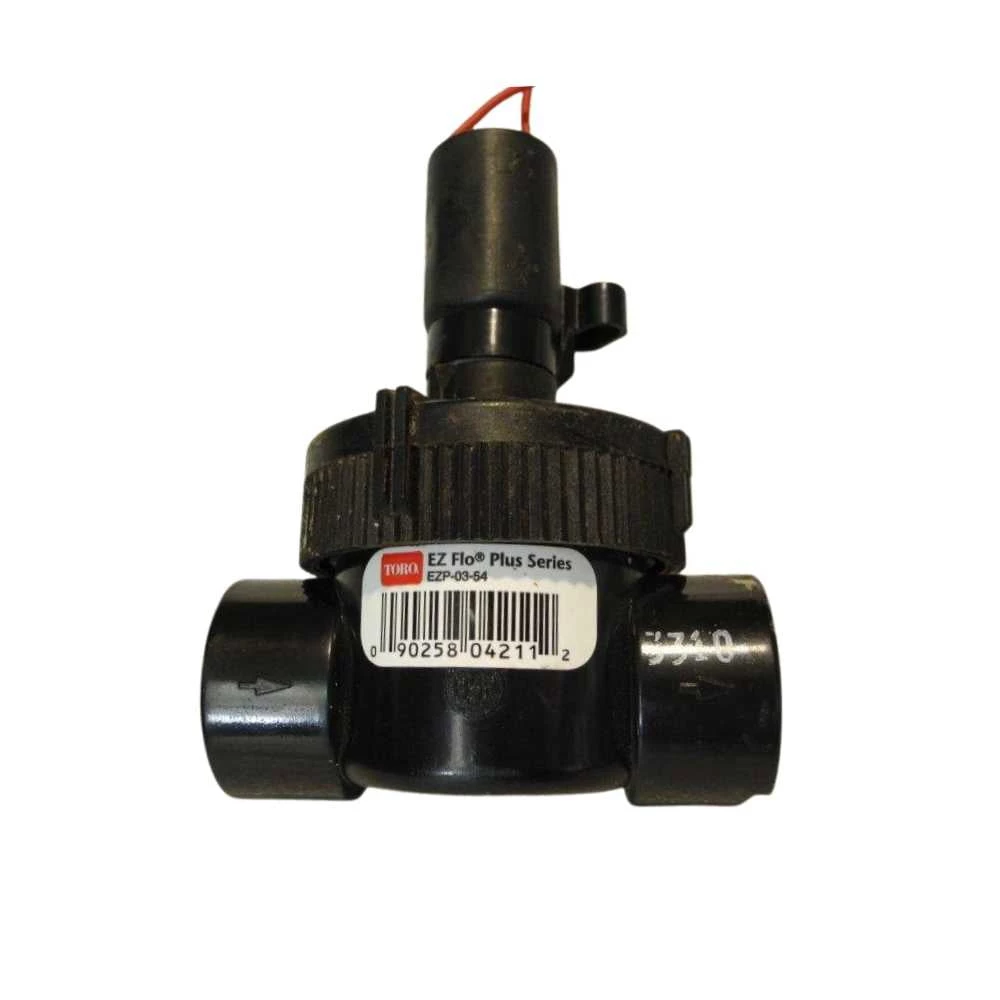

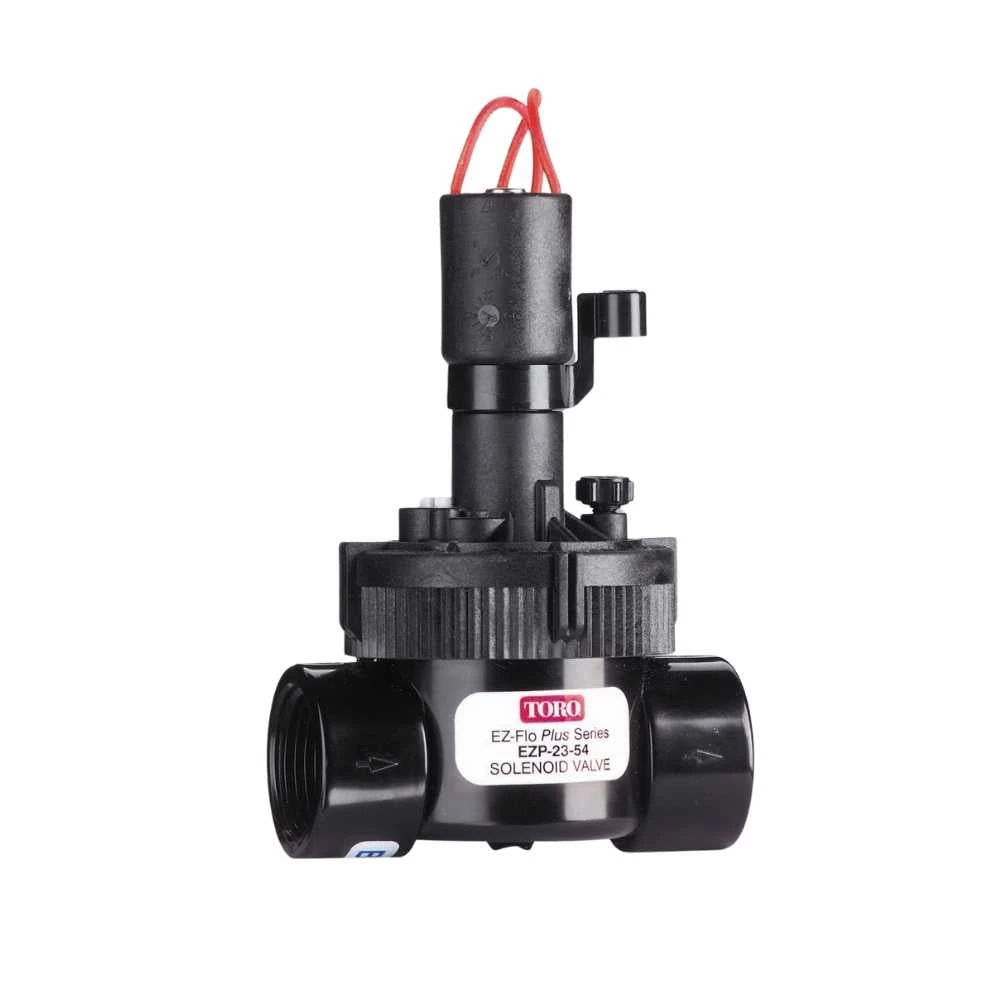

Solenoid Valves Toro EZ Flo Plus Solenoid Valve

Proven reliability, easy to install and service. These new control valves provide lower frictional losses, more compact size and reduced spare parts cost. As well as threaded versions we have a slip option for P.V.C laterals.

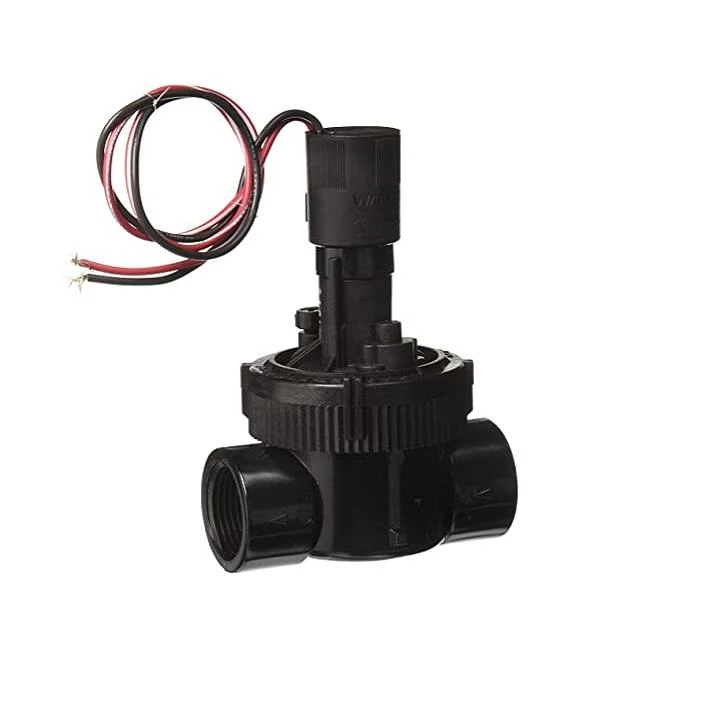

Available in 12V DC Version with Flow Control for Battery Operated Controllers.

• Jar-Top Design
  No screws mean less time flushing out the system on start-up. Cleaning the diaphragm area is uncomplicated as it requires no tools. EZ-Flo Plus valves are simple to service – it’s that easy.
• PVC, Glass-Filled Polypropylene and Stainless Steel Construction
  Provides longer life span and leak protection in nearly any environment.
• Double-beaded, Chloramine and Ozone-Resistant Santoprene® Diaphragm
  Ensures a consistent, leak-proof seal all the way up to 1000 kPa.
• Optional Flow Control
  Adjusts the flow of each zone on a system.

Specifications:

• Dimensions: 130 x 75 x 101 mm H x W x L
• Flow Range: 1.0-113 Lpm
• Operating Pressure: 70-1000 kPa
• Encapsulated solenoid (588403) with captured hex plunger assembly (24 VAC)
• Inrush current, 0.4 amps
• Holding current, 0.2 amps
• Available with or without flow control
• DCLS-P — Potted DC Latching Solenoid (max. pressure 820 kPa)
• Warranty: Five years
