Rain Bird HE-VAN Nozzles

The Rain Bird HE-VAN Nozzles have an easy arc adjustment from 0° to 360° with a simple twist of the centre collar to increase or decrease the arc setting.

ExactEdge™ takes the guesswork out of arc adjustment. As you turn the nozzle to the desired arc setting, you’ll feel it lock into place for a clean, consistent edge every time.

• Matched precipitation rates with Rain Bird® MPR and U-Series Nozzles.No special tools required.
• Stainless steel adjustment screw to adjust flow and radius, up to a 25% reduction in radius.
• Fits on all Rain Bird® 1800® Series Spray Heads, UNI-Spray™ Series Spray Heads and Rain Bird Shrub Adapters

Radius:

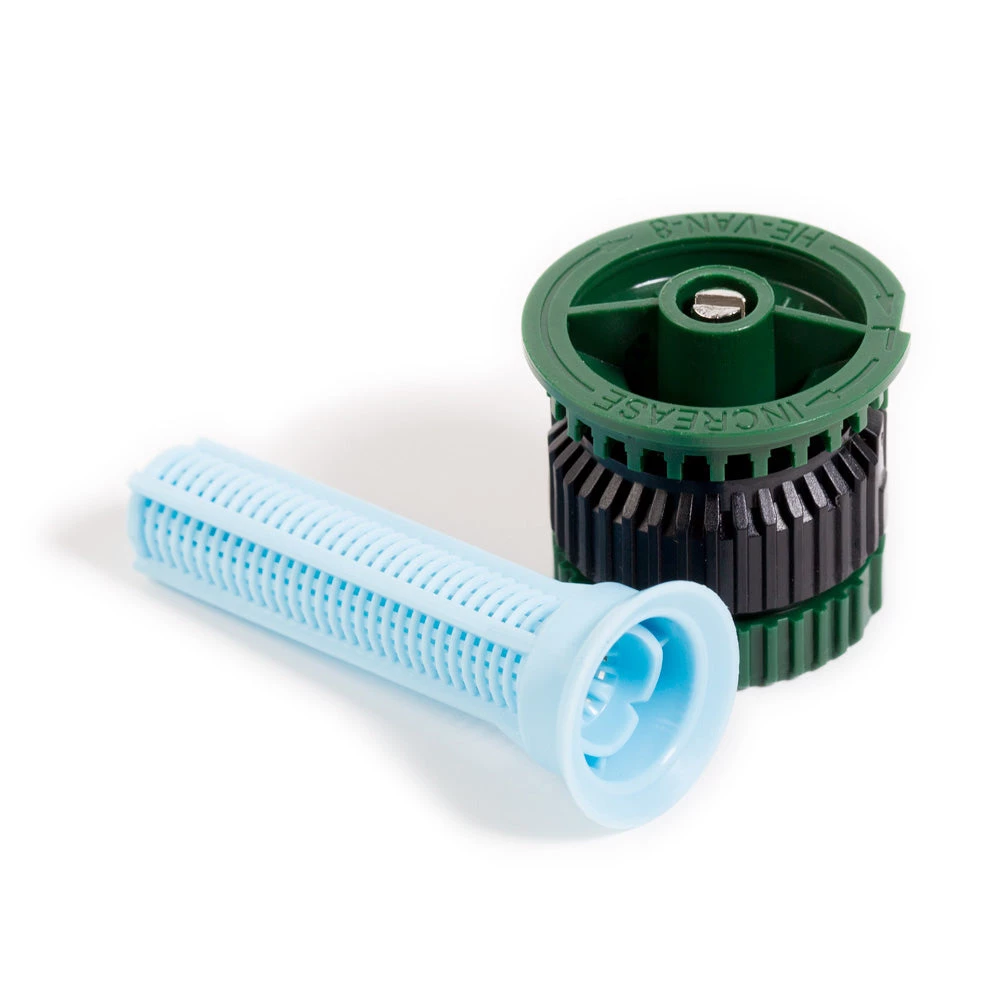

• HE-VAN-8: 6 to 8 feet (1.8 m to 2.4 m)

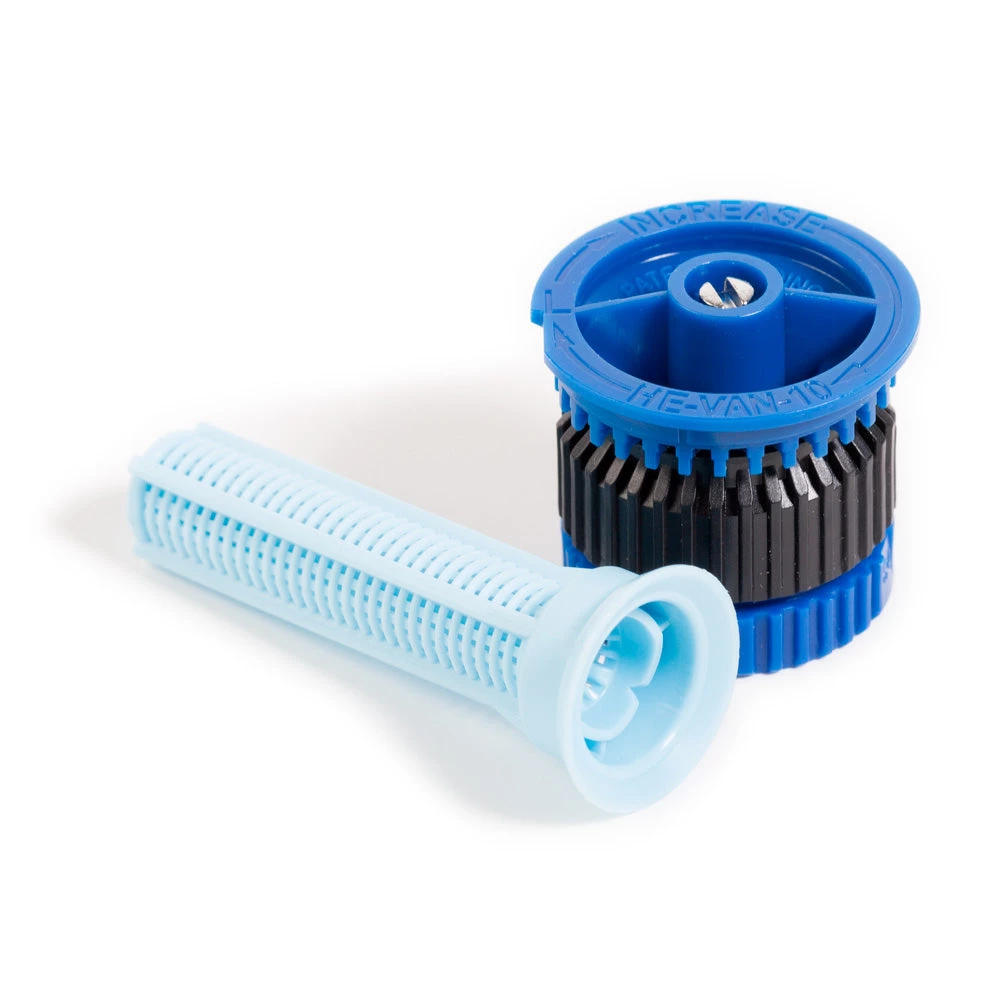

• HE-VAN-10: 8 to 10 feet (2.4 m to 3.0 m)

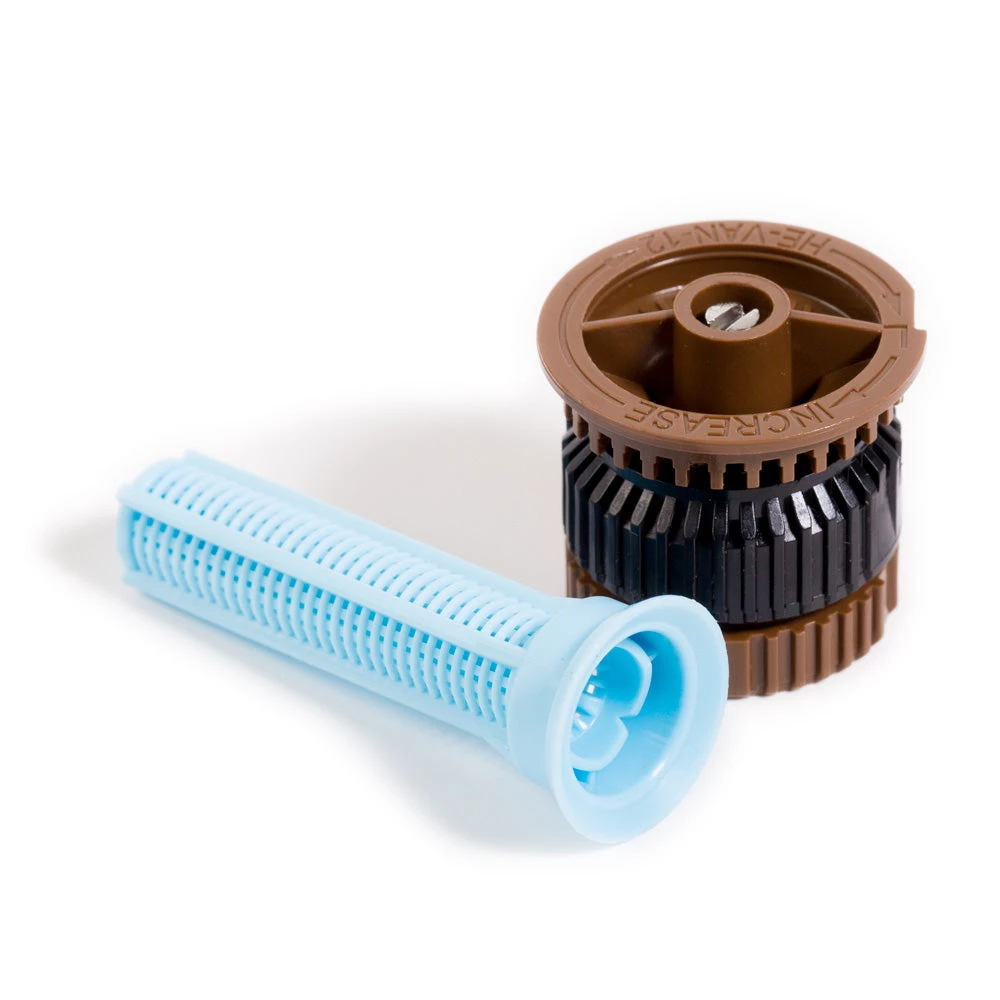

• HE-VAN-12: 10 to 12 feet (3.0 m to 3.7 m)
• HE-VAN-15: 12 to 15 feet (3.7 m to 4.6 m)

Pressure: 15 to 30 psi (1.0 to 2.1 bar)

Optimum Pressure: 30 psi (2.1 bar)
