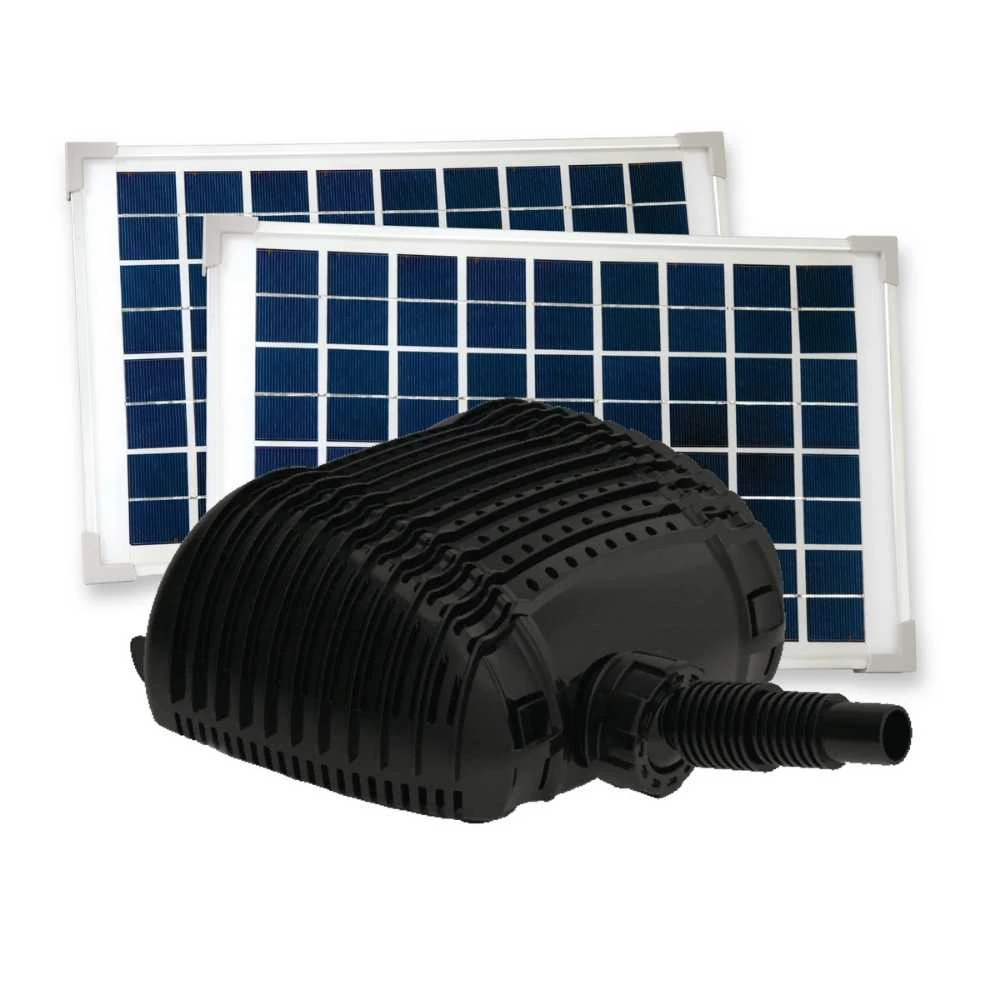

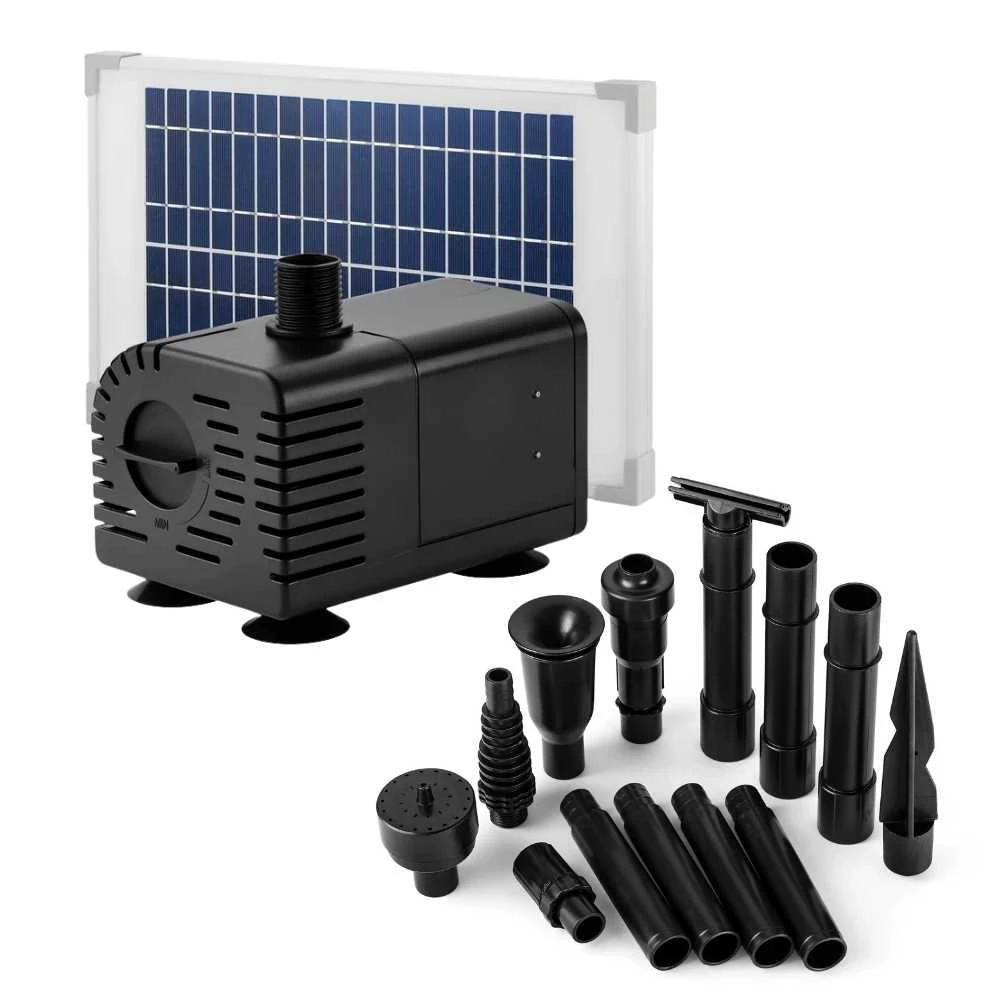

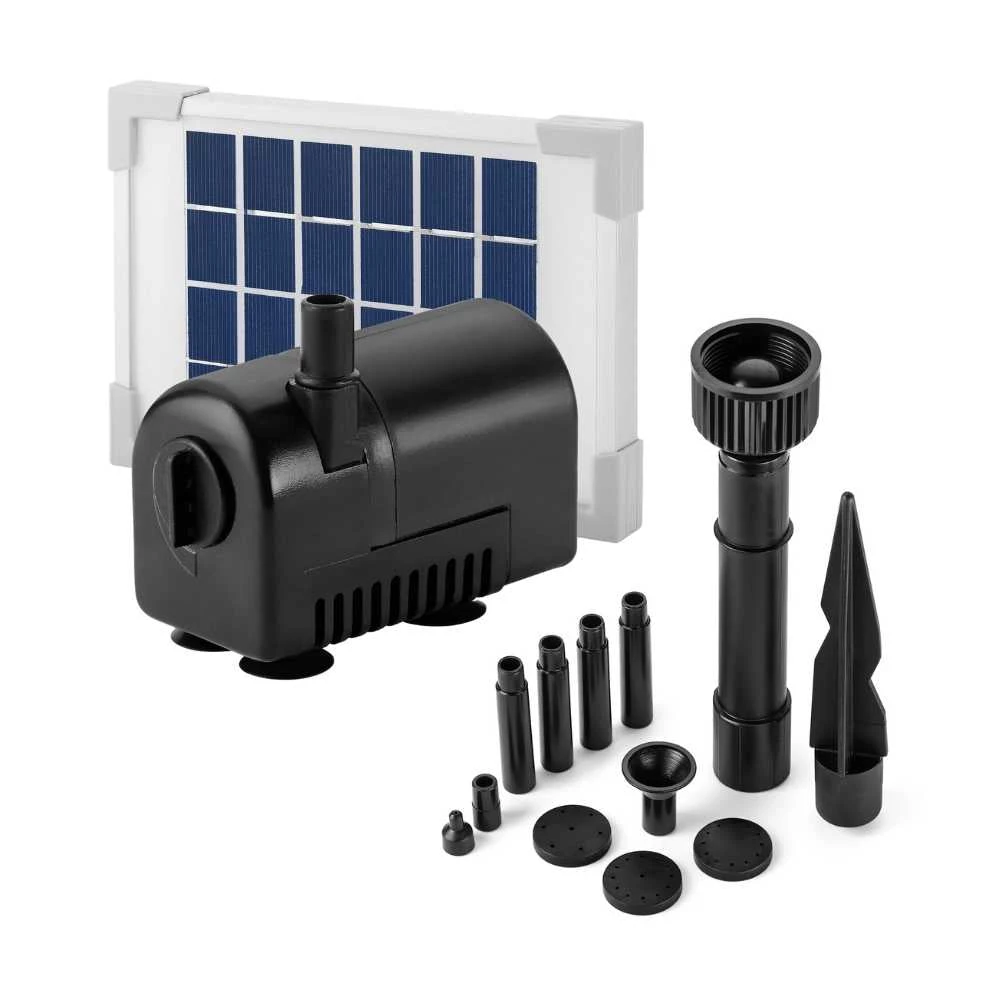

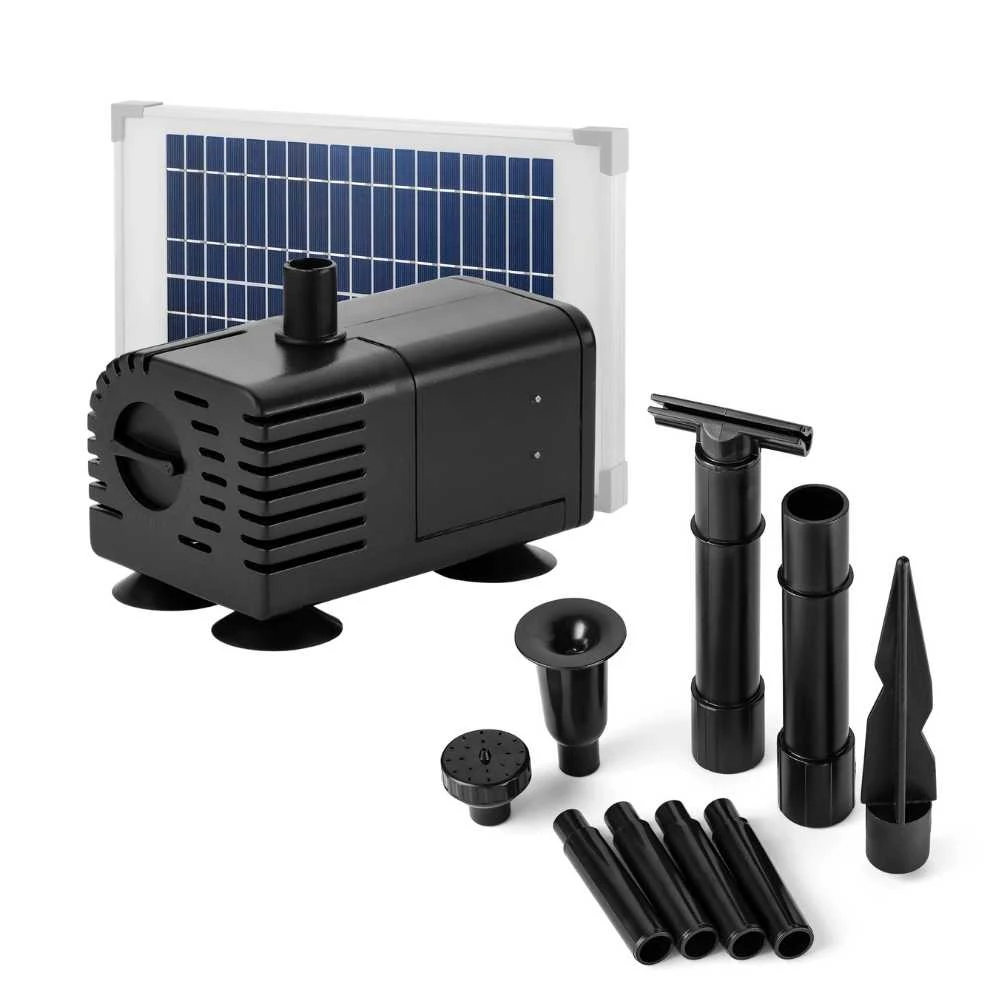

PondMax Solar Pump & Panel Kits

PondMAX DC Solar Pump & Panel Kits are great for medium sized water features and small ponds with no fish.

• Advanced low voltage pump motor design with DC current, brushless motor
• Low water level cutout – will automatically cut power to the pump on low water level
• Long life impellor design – ceramic shaft is wear resistant and self-lubricated by water
• Energy efficient – runs directly off energy from the sun via the solar panel
• Eco friendly – exceptional low dB noise rating with low mechanical vibration
• Tool-less assembly for easy maintenance. No special tools required.
• Easy to install due to the plug-and-play plug design and extra low voltage electrical system.

Please note: the PS3500 Solar Kit does not come with a fountain kit like the other models do.

FlowPro Tip: You can add the optional battery backup box – for the PS3500 only – to enable 4-6 hours of run time after dark.

CODE:	02PS011	02PS010	02PS012	02PS001
MODEL:	PS200	PS600	PS1700	PS3500
MAX FLOW (L/H):	175	630	1700	3400
MAX HEAD (M):	0.7	1.6	2.6	3
INLET OUTLET SIZE (MM):	20	20	25	25, 32, 40
POWER (W):	1	6.5	19	50
CABLE LENGTH (M):	5	5	5	5
MEASUREMENTS (MM) L X W X H:	70 x 35 x 60	110 x 70 x 80	130 x 85 x 100	330 x 300 x 130

IMPELLOR & SHAFT (600):	02PS014
IMPELLOR & SHAFT (3500):	02PS006
5M SOLAR EXTENSION CABLE:	02PS013
