Naan Dan Jain NaanDan Jain Plastic 5035 Impact Sprinklers Impact & Pulse Sprinklers

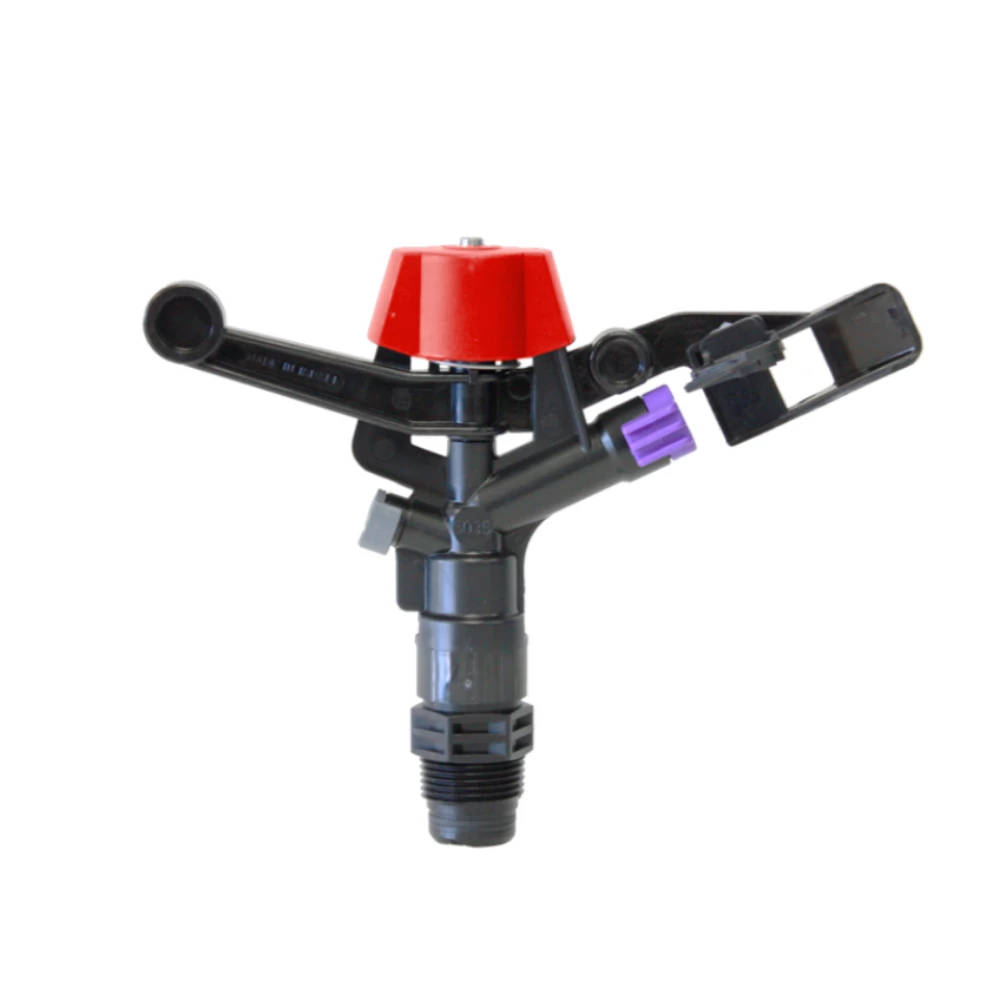

5035SD

Plastic impact sprinkler, 3/4” male, full circle.

APPLICATIONS:
General field use typically on solid set irrigation systems for vegetables and pasture where wider row spacings are required.
The 5035 SD sprinkler uses 3.5, 4.0, 4.5, 5.0, 5.5 and 6.0mm main nozzles.

STRUCTURE AND FEATURES:

• Unique hammer combined with SD (Super Diffuser) plate – designed for uniform distribution with single or dual nozzles.
• Recommended operating pressure range of 2.5 to 5.0 bar.
• High distribution uniformity up to 20m spacing.
• Integrated stream straightening vane for maximum range.
• Colour-coded bayonet nozzles for easy service.
• High impact and heavy-duty plastic materials for resistance to corrosion, agricultural chemicals and UV radiation.

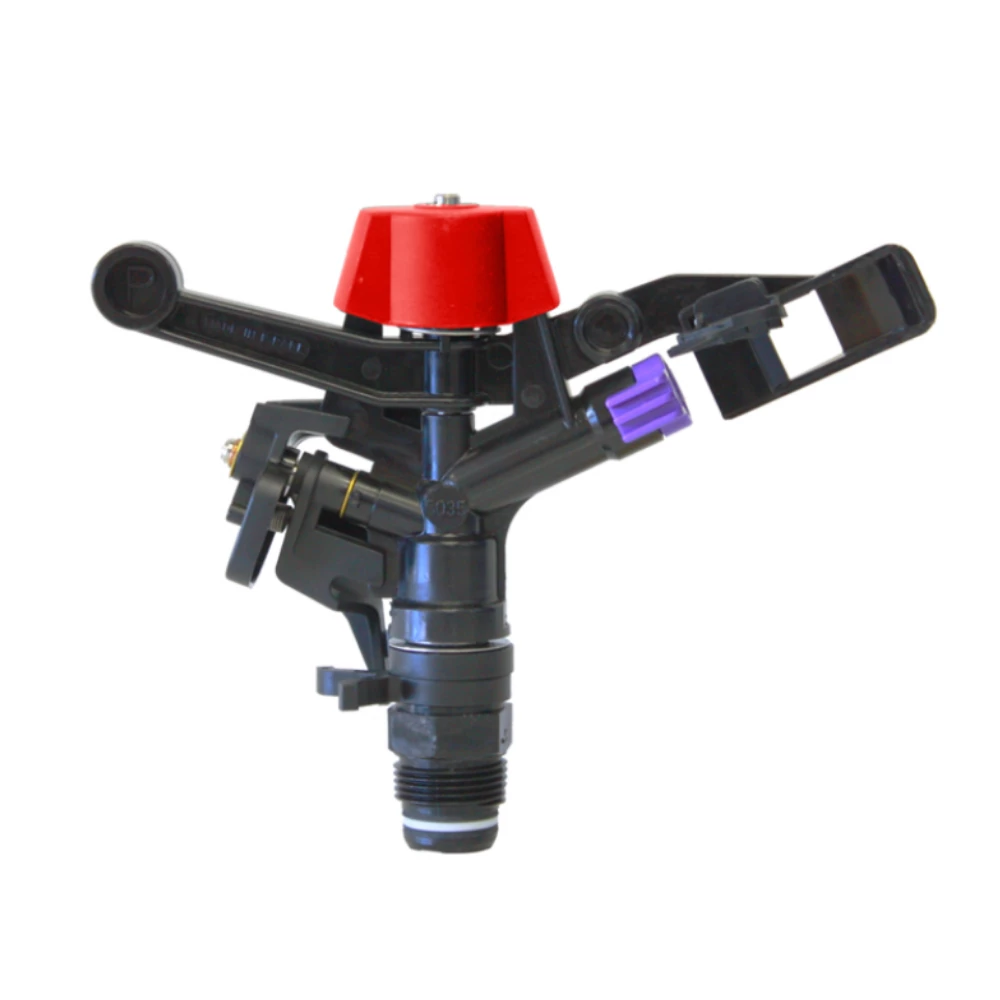

5035SD PC

Plastic impact sprinkler, 3/4” male, part circle.

APPLICATIONS:
Used around field edges and headlands or as a larger landscape sprinkler.
The 5035 SD PC sprinkler uses 3.5, 4.0, 4.5 and 5.0mm nozzles.

STRUCTURE AND FEATURES:

• Unique and innovative PC mechanism that is locked into rear nozzle housing.
• Hammer with SD (Super Diffuser) plate – designed for uniform distribution.
• Recommended operating pressure range of 2.5 to 5.0 bar.
• Integrated stream straightening vane for maximum range.
• Color-coded bayonet nozzles for easy service.
• High impact and heavy-duty plastic materials for resistance to corrosion, agricultural chemicals and UV radiation.
