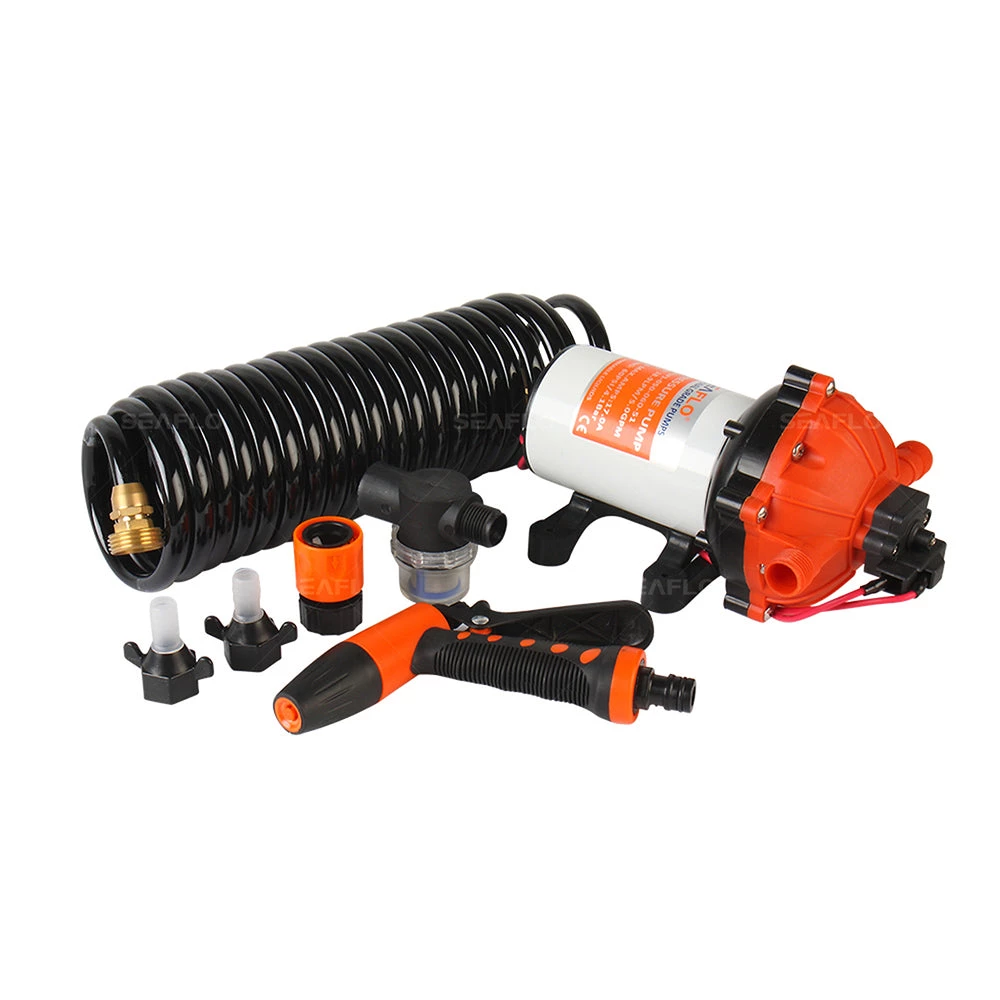

Low Voltage Pumps Seaflo Extreme Wash Down Pressure Clean Kit

5GPM / 18.9LPM / 70PSI

Our heavy-duty washdown kit. The best choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications. This pump boasts a huge 5 GPM capacity. This pump has an on-demand switch, so the pump automatically turns on when you squeeze the spray gun handle. With 70 PSI cutoff, this has the pressure to get rid of stubborn debris. Suitable for fresh and saltwater applications.

PUMP

Type	5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	Pressure switch
Max Recommended Temperature	60° C（140° F）
Priming Capabilities	6 feet (1.8 m) suction lift
Re-start Pressure	Shut-off Pressure 70 PSI ：56 PSI ±5 PSI(±0.3 bar)
Inlet/Outlet Ports	1/2″-14 MNPT
Weight	8.2 lbs (3.7 kg)



MOTOR

Leads	14 AWG, 13″ (33 cm) long with 2-Pin connector/Leads
Duty Cycle	Continuous
Max.Amp Draw	18.0 A
Fuse	27.0 A



STANDARD PUMP CONFIGURATIONS

Model	Voltage	Open Flow （GPM/LPM）	Control Type	Max Draw	Shut-off Pressure （PSI/BAR)	Valves	Diaphragm	Ports	Wire Connections
SFWP1-050-070-51NEW	12V	5.0 / 18.9	switch	17.0A	70 / 4.8	EPDM	Santoprene	1/2″-14 MNPT	2-Pin/Leads

PERFORMANCE

5.0GPM PRESSURE FLOW CURRENT PSI BAR GPM LPM AMPS 0 0 4.91 18.60 6 20 1.38 3.75 14.20 9.8 30 2.07 3.43 13.00 11.17 40 2.72 3.12 11.80 12.4 50 3.45 2.85 10.80 13.5 60 4.14 0 0 14.5

HEAT RISE
