Grundfos Pumps Pressure Pumps Grundfos CM Booster Domestic Pressure Pump

**WE WILL TRY TO MATCH ANY ONLINE PRICE FOR THE IDENTICAL PRODUCT**

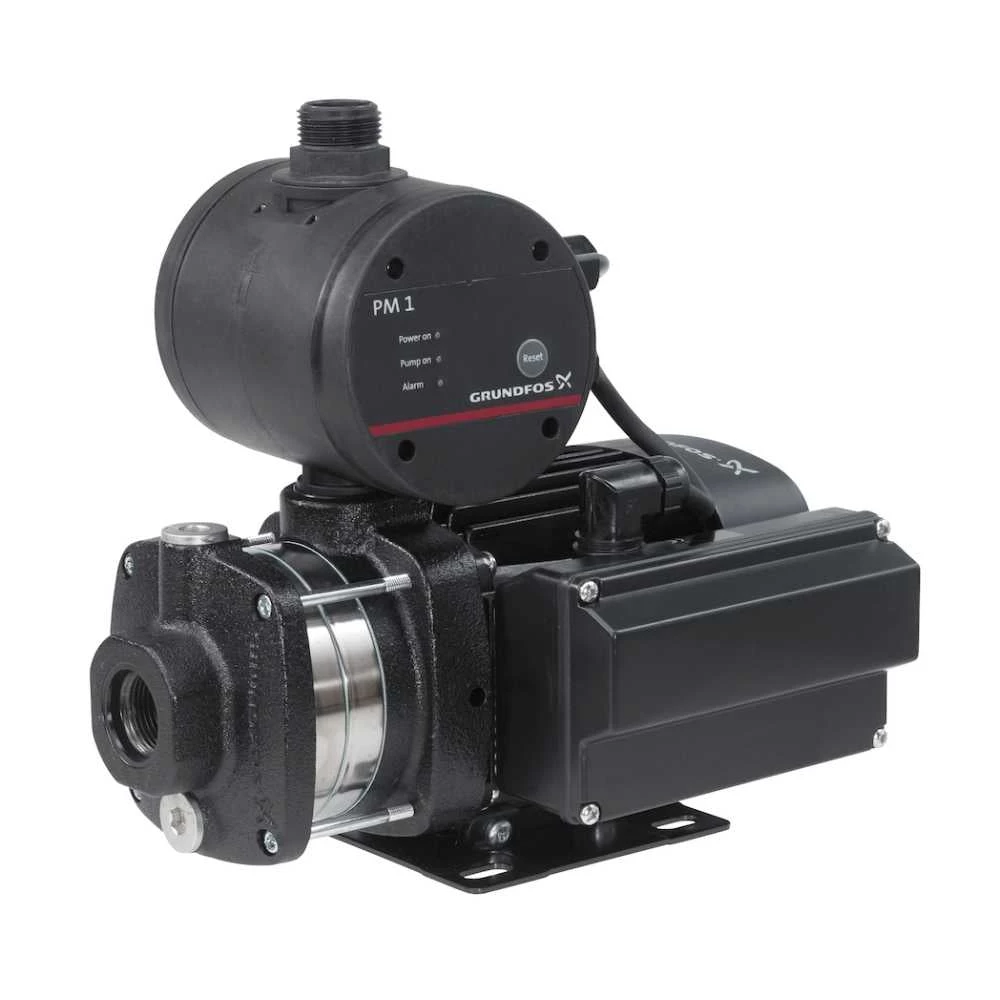

The Grundfos CM Booster consists of a horizontal multistage, compact booster pump, and a Grundfos PM1 1.5 Pressure Manager. The pump is suitable for above ground tanks only. For self-priming solutions, see CMB-SP.

This pump is a consists of a Grundfos CM cast iron pump with stainless steel hydraulic components designed for domestic and light industrial applications. It is suitable for pressure boosting from above ground rainwater tanks or from mains water.

The PM1 Pressure Manager allows the pump to start and stop automatically according to demand and protects the pump from dry running.

• Non self-priming stainless steel pump CM-A with PM1
• Cable 1.2m with plug
• Supply voltage: 1 x 240 V, 50 Hz
• System pressure: Maximum 10 bar
• Enclosure class: Suitable for covered installation (IP55)
• Compact design
• Robust, stainless steel construction
• Dry run protection
• Easy installation
• Integrated non-return valve

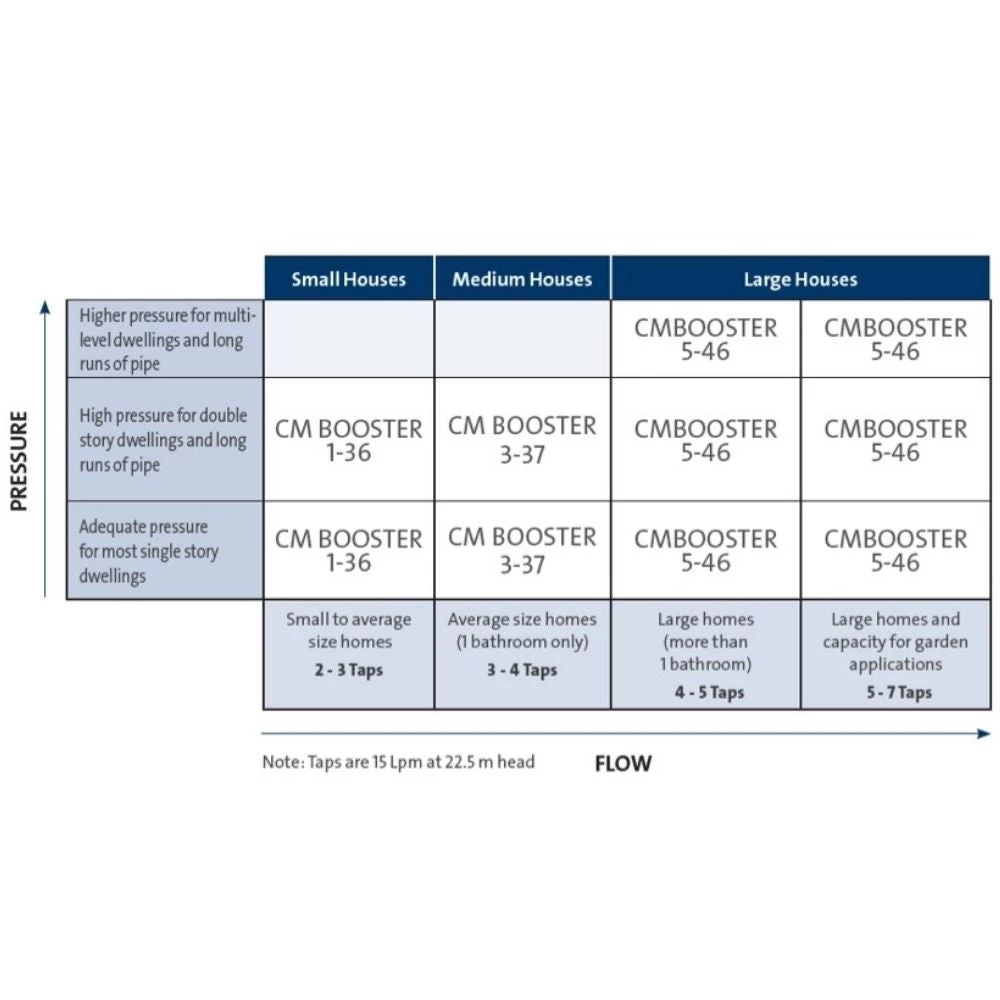

Model	Inlet	Outlet	Rated Head (m)	Rated Flow (L/min)	Start Type	Power Consumption (kW)
CMB 1-36	1″ F	1″ M	23.7	28	PM1 – 1.5 bar	0.50
CMB 3-37	1″ F	1″ M	27.7	51	PM1 – 1.5 bar	0.50
CMB 5-46	1 1/4″ F	1″ M	38.6	78	PM1 – 2.2 bar	0.90



The performance of your Grundfos pump is reliant on selecting the right pump for the site conditions and situation. Our retail shop staff have many years of pump experience and are happy to help you select the right pump for your application. Please contact us for assistance.
