Grundfos Pumps Grundfos GT-H PN16 Pressure Tanks

**WE WILL TRY TO MATCH ANY ONLINE PRICE FOR THE IDENTICAL PRODUCT**

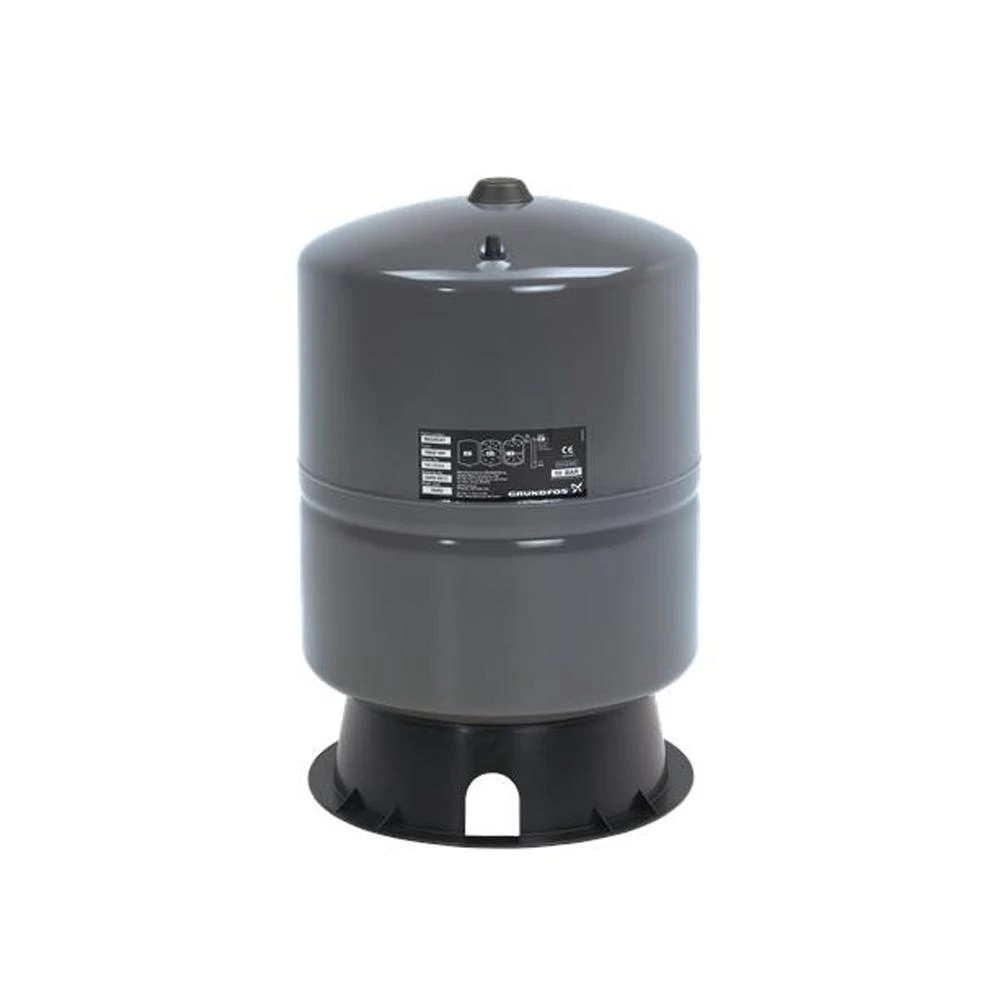

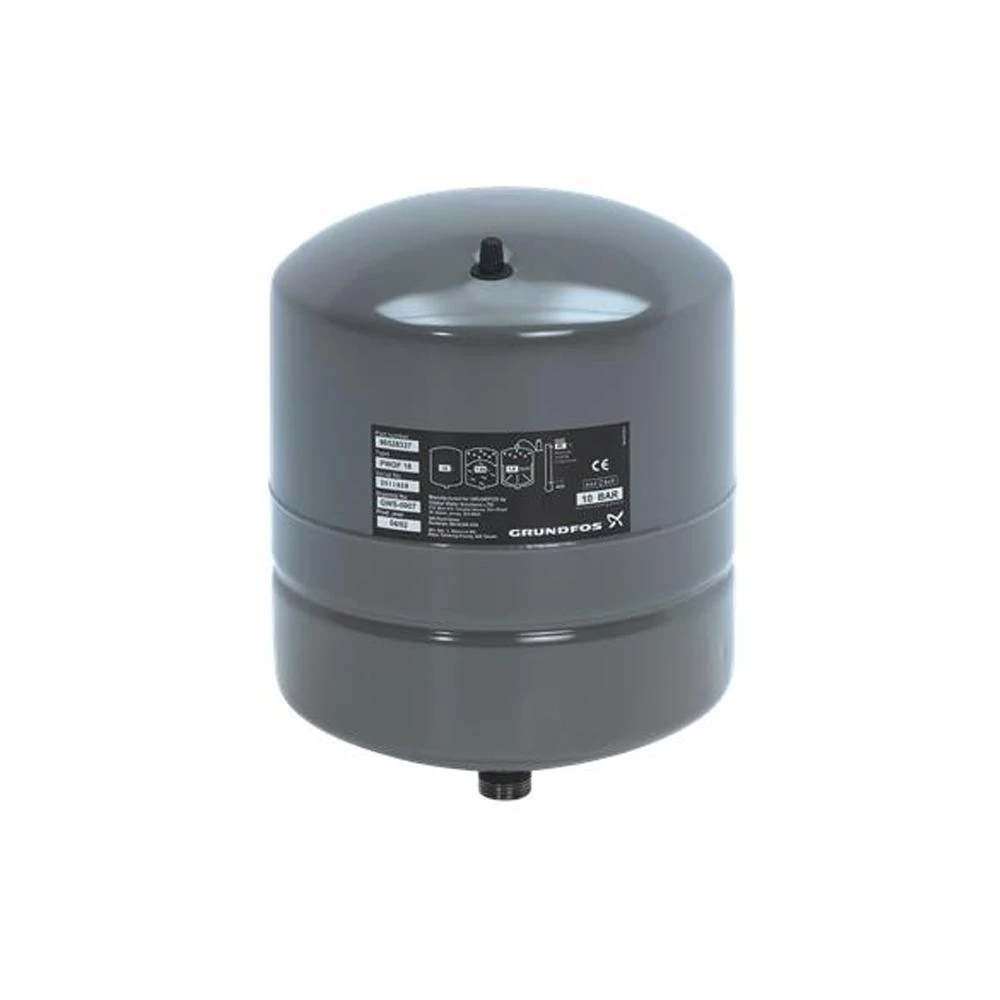

Grundfos GT-H PN16 G1 V is a Diaphragm pressure tank, designed for Vertical installation. The tanks are approved for drinking water. The GT-H-80 PN16 G1 V is designed for a maximum operation pressure of 16 bar and a maximum liquid temperature of 90 °C.

The tanks have a non-replaceable diaphragm that is pre-charged with nitrogen (1.5 bar). The tanks have a non-toxic butyl rubber diaphragm, dividing the tank chamber into two compartments. The upper compartment contains compressed nitrogen. The lower compartment has a liner of polypropylene (PP) and is filled with water from the pump.

A pressure tank ensures controlled pressure in the water supply and thereby limits the switching frequency of the pump in case of low water consumption or leakage loss. The result is increased comfort in your installation by limiting the start/stop frequency of your pump, and it increases system comfort by compensating for pressure drops when a tap is opened, while reducing problems with water hammer in the pipework.

Recommend application: Drinking water.

Size	18L	80L
Maximum operating pressure	16 bar	16 bar
Pre-pressure	1.9 bar	1.9 bar
Type of connection	G	G
Size of connection	1 inch	1 inch
Size	18.0	80.0
