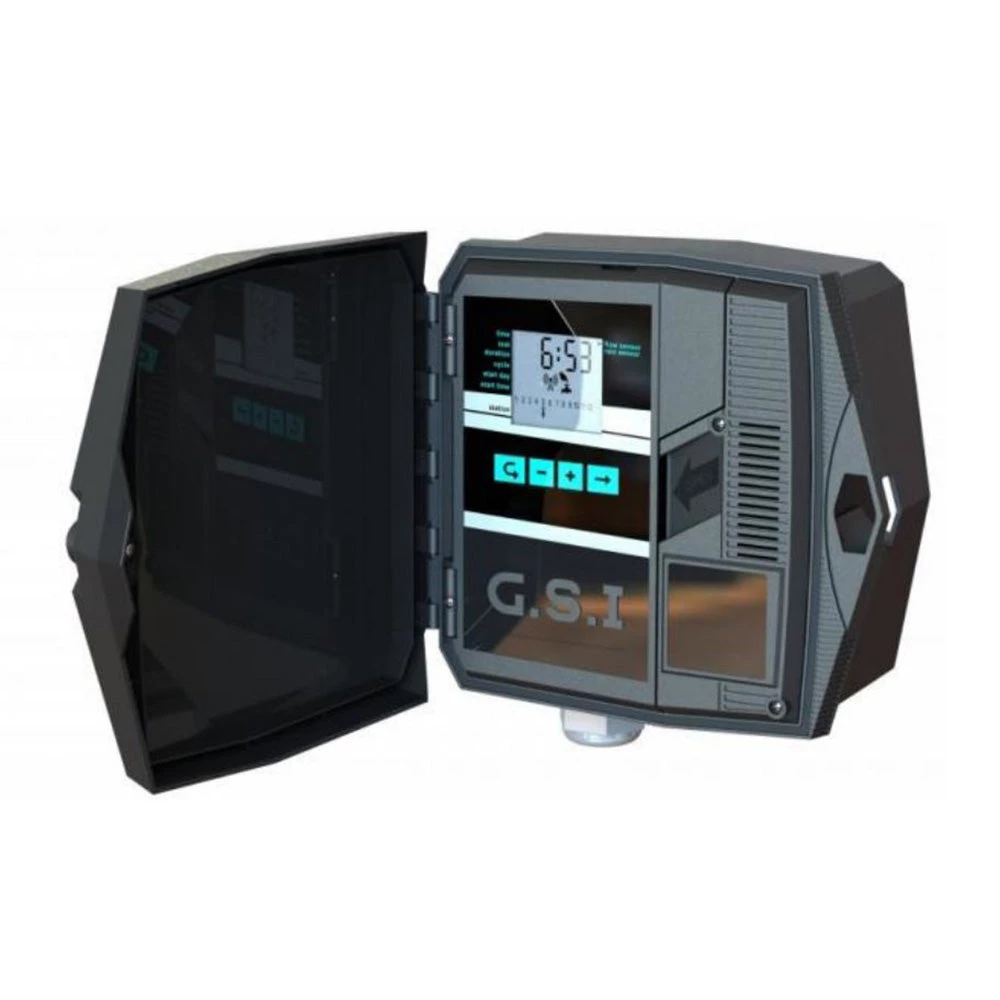

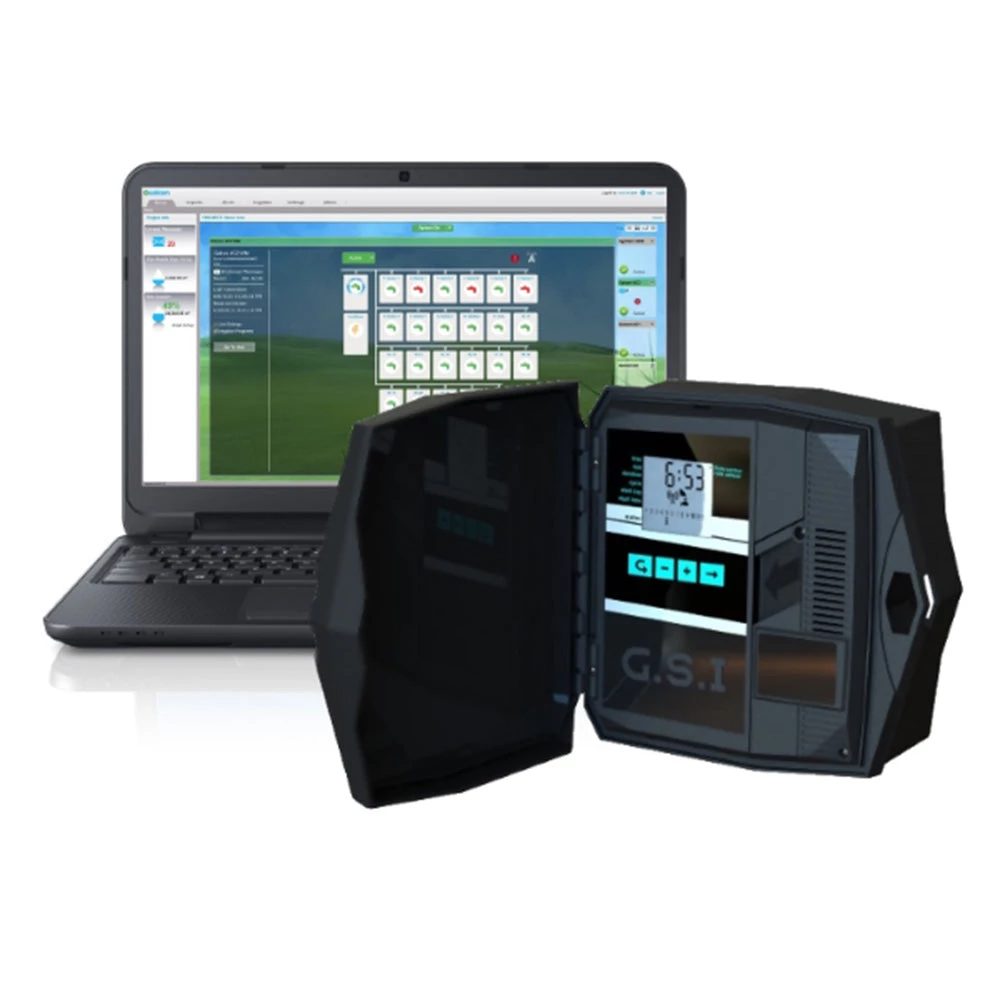

Galcon GSI Web Based Smart Controller

• DC Controller – 12 station + master valve, battery operated
• AC Controller – 12 or 24 station + master valve, AC connection
• Pulse Water meter connection
• Leak detection using pulse water meter
• Fertilizer injection based on % of station on time (meter not supplied)

PROGRAMMING OPTIONS:

• Daily, Weekly or Cyclic Scheduling up to 999 days
• 8 irrigation programs (up to 4 on at the same time)
• 4 start times per program
• Interval watering – start and stop time – ideal for loop watering, up to 99 cycles, up to 99 intervals
• Station run times 1 minute to 24 hours
• Selectable non watering window by calendar date
• Seasonal settings with budgeting
• Irrigate by Time, Area or Volumetric settings

ELECTRICAL SPECIFICATIONS: 240 V AC SERIES

• Transformer input: 240V 50Hz with power lead
• Transformer output: 24vac 2.5 amp
• Station output: 0.5 amps per station
• Maximum output: 4+1 (Master)
• Electronic short circuit protection
• Non-Volatile memory for program data
• Backup Battery: 4 x 1.5v A type
• Cellular modem: Quad band GSM modem intergrated (GPRS class 10)
• Operating ambient temperature -100 C to 600 C

ELECTRICAL SPECIFICATIONS: DC BATTERY SERIES

• Input Options: Batteries 4 x 1.5V D size Alkaline type
• Input Options: Batteries 2 x 3.6V D size Lithium
• Output: Operates DC Latching solenoids only
• Maximum output: 1 +1 (Master)
• Cellular modem: Quad band GSM modem integrated (GPRS class 10)
• Operating ambient temperature -100 C to 500 C

ACTIVE INPUTS:

Pulse Water meter – counts water flow rate and returns a pulse signal to input.

Pulse fertilzer meter – counts fertilizer flow rate and returns a pulse signal to input
