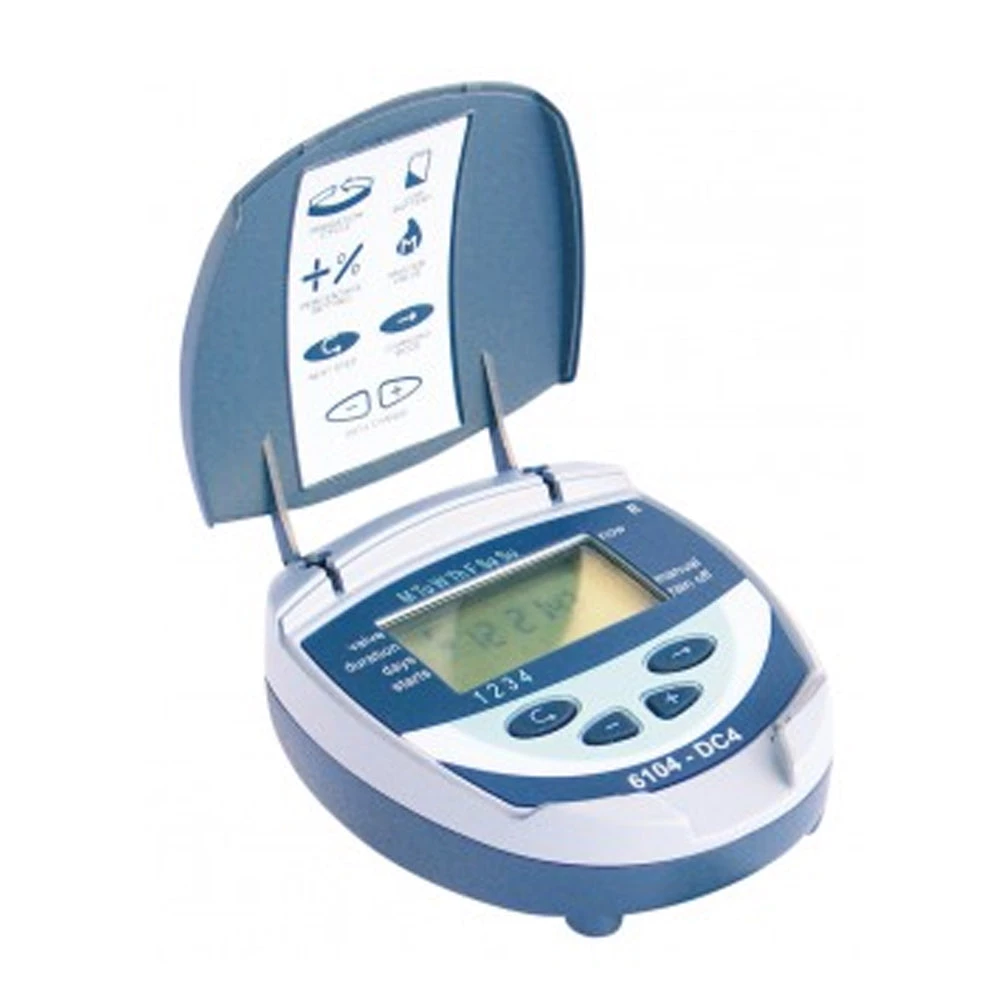

Galcon 6100 DC Series Battery Operated Controllers Battery Operated Tap Timers & Controllers

Galcon DC series battery operated controllers, available in 1, 4, and 6 station models. Used where power is not available and designed for use in all landscape and home watering systems. All DC series models are IP 68 rated allowing them to be buried below ground in valve box. Search DC-S for misting applications.

FEATURES

• Up to 4 cycle starts per day
• Station water time 1 second to 11 hrs 59 seconds
• Selectable by day Monday – Sunday
• Watering frequency once every minute or once every 30 days in cyclical program
• Daily loop cycle watering
• Rain delay from 0 – 30 days
• Water budgeting -90% to +90% in 10% increments
• Mounts directly over solenoid
• 2 x 9 volt alkaline batteries (optional extra)
• Operating pressure 105 – 800 kPa
• A maintained filter is recommended upstream of the solenoid valve
• Remove batteries if irrigation suspended for more than 30 days
• Maximum valve distance from DCS series is 5 meters

MODELS IN RANGE:

• DC1S – with misting cycle & 12v DC 3-wire Latching solenoid coil
• DC4
• DC6S – with misting cycle
