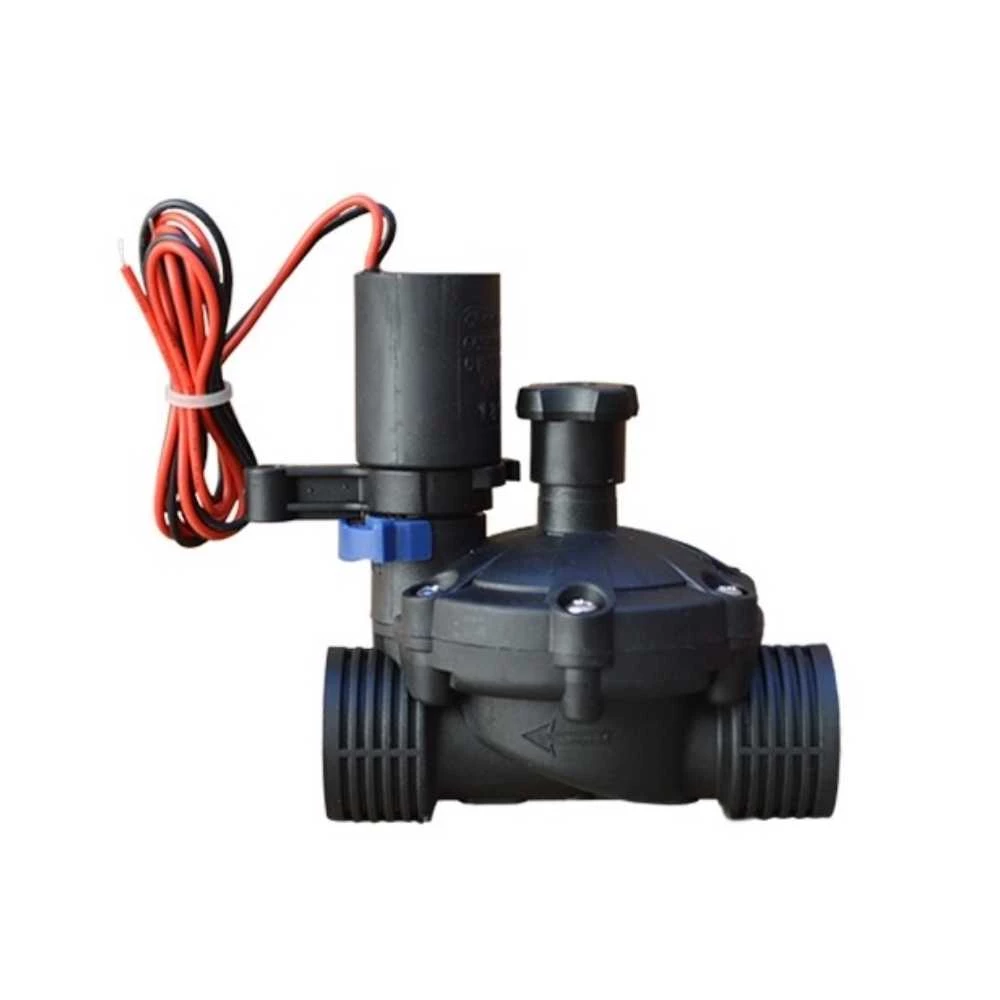

Galcon 25mm DC Series Solenoid Valve

This is diaphragm valve is fitted with a 12v DC 3-wire Latching solenoid. The valve is compatible with the Galcon DC Battery Operated Controller systems such as the 6100 series DC1S, DC4 & DC6S controllers. Available in 25mm 1″ BSP thread.

• Automatic or manual operation, enabling opening and closing of the valve regardless of the solenoid position
• The valves are available in the following diameters: ¾”, 1″, 1.5″, 2″
• Powered by a two- or three-wire AC or DC solenoid
• BSP thread
• Working pressure: 1-7 bar (14-100 psi)
• Maximum temperature – 140°F/60°C

Valve suits:

• DC1S – suits but is not required. Coil on DC1S also fits other industry valves. We recommend the Irritrol 205MT.
• DC4 – valve is required for this controller
• DC6S – valve is required for this controller
