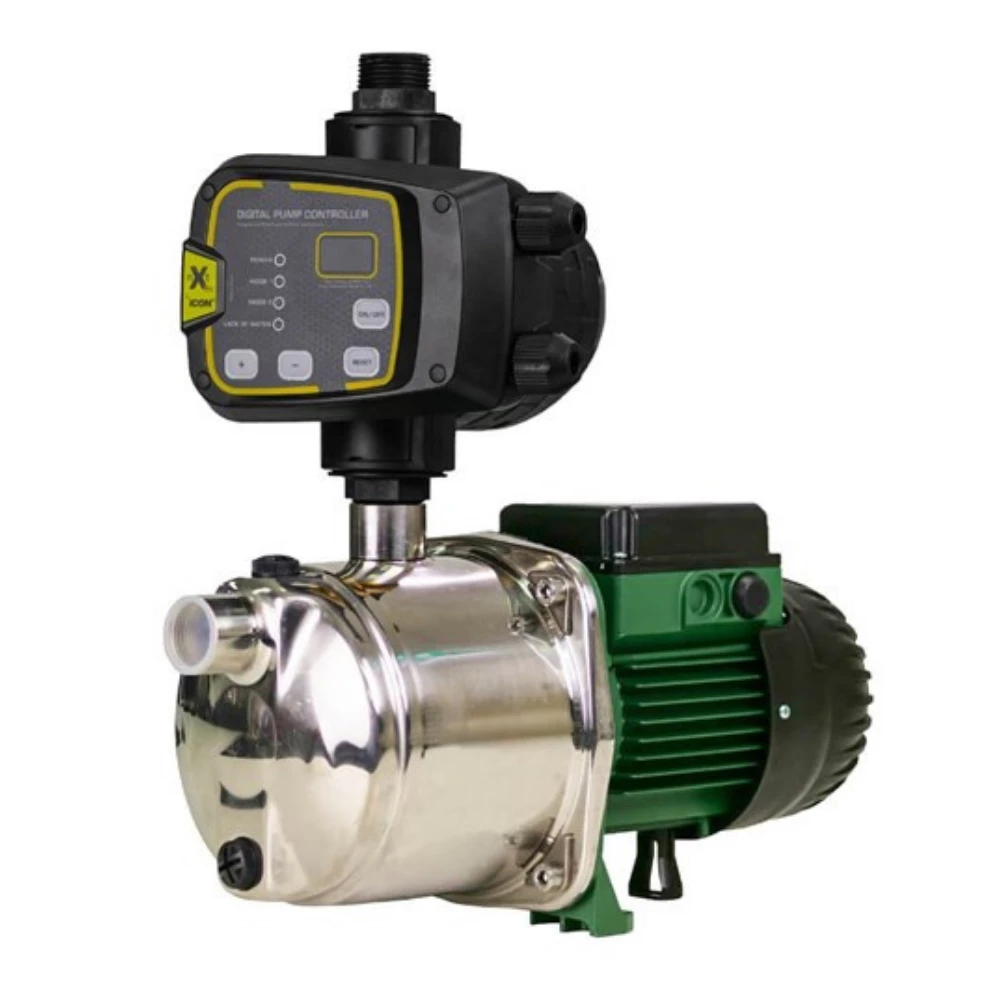

DAB EURO-INOX NXt Horizontal Multistage Pressure Pump

NEW! DAB Surface Mounted, Stainless Steel, Horizontal Multistage with nXt Pro intelligent 2 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

• 1.0kW, 1.36hp, 240V, max hd 59m, max flow 120L/m, 12 taps
• Ports 1″ BSPF In, 1″ BSPM Out
• Warranty 2 Year DAB Pumps Warranty
• This pump includes the Bianco iCON nXt PRO Pump Controller (yellow)

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

CONTROLLER FEATURES:

• Digital display gives you a real time indication of system pressure
• Anti-cycle Protection
• Dry run protection with auto restart function that tests for water availability every 24hrs
• Anti-seize function if pump has not operated for last 24 hours
• Controller automatically restarts pump after a power failure
• Easy assembly and removal using push-n-connect fitting with U clip
• Complies to AS/NZ 4020 drinking water standard
• Over pressure protection turns pump off when 10 bar is reached
• Overload protection

Brand	DAB Pumps
Product Type	Pressure System
Suitable For	Clean Water
Bar	5.8
Approval	Drinking Water Approval
Amps	6.5
Flow Range Category	b. 100 – 199 L/min
Flow Rate (L/min)	120
Float	No
Hp	1.36
kPa	578
Kilo Watts	1
Max Flow (L/min)	120
Head Range Category	b. 40 – 59 m
Max Head (m)	59
Port Size Inlet	1″ BSPF inlet
Port Size Outlet	1″ BSPM outlet
Powered	Electric
Taps	12
Volts	240
Warranty (months)	24
Watts	1000
