*Please note we only stock the 808393. If you require the BIA-INOX60nXT we will need to order it in for you.

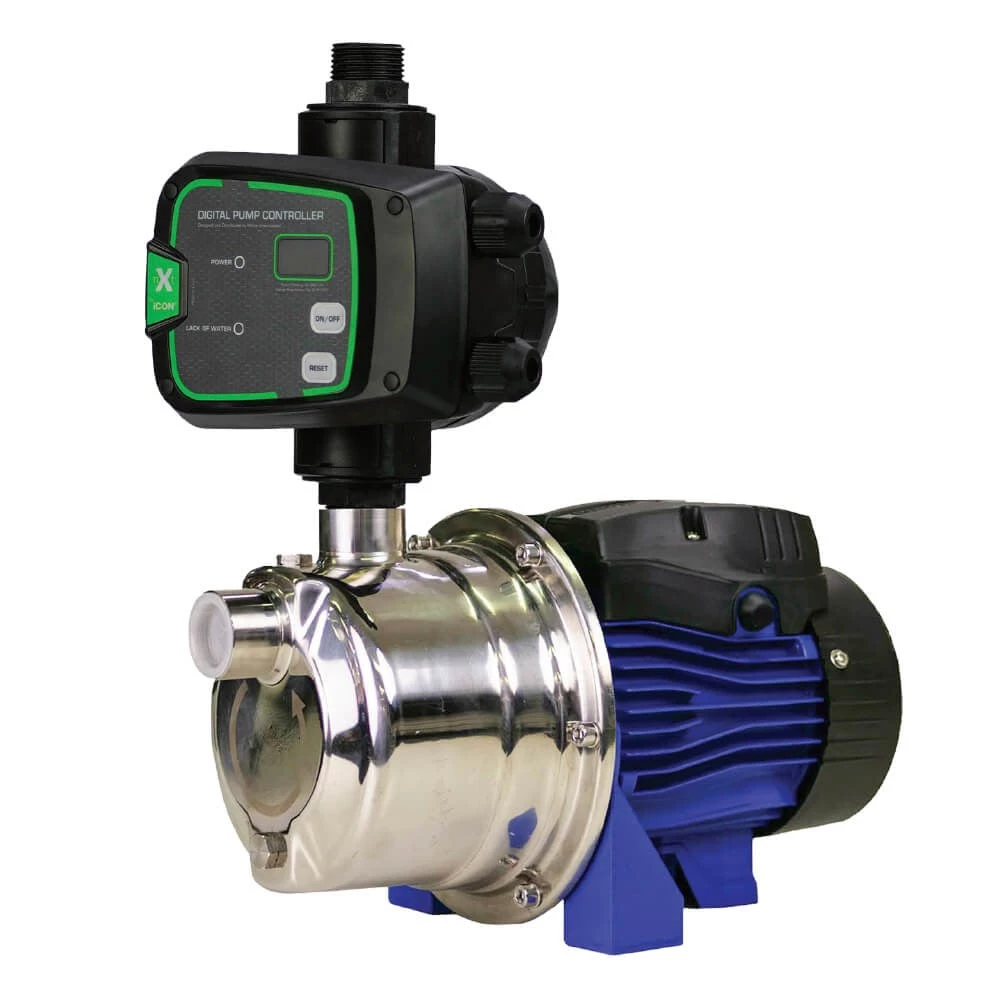

Bianco Stainless Steel Surface Mounted – Jet Pump with nXt Series (Green) Intelligent 1 mode controller.
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
- 0.45kW, 0.6hp, 240V, max hd 40m, max flow 58L/m, 5 taps
- Ports 1″ BSPF In, 1″ BSPM Out
- 2 Year Bianco Pumps Warranty
- Drinking water approved.
- Pricing includes the Bianco iCON nXt series pump controller.
The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
CONTROLLER FEATURES:
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
PUMP SPECIFICATIONS:
| INOX45 | INOX60 | |
| Brand | Bianco Pumpz | Bianco Pumpz |
| Product Type | Pressure System | Pressure System |
| Suitable For | Clean Water | Clean Water |
| Bar | 3.9 | 4.4 |
| Approval | Drinking Water Approval | Drinking Water Approval |
| Amps | 3.5 | 4 |
| Flow Range Category | a. 0 – 99 L/min | a. 0 – 99 L/min |
| Flow Rate (L/min) | 58 | 62 |
| Float | No | No |
| Hp | 0.6 | 0.8 |
| kPa | 392 | 441 |
| Kilo Watts | 0.45 | 0.6 |
| Max Flow (L/min) | 58 | 62 |
| Head Range Category | b. 40 – 59 m | b. 40 – 59 m |
| Max Head (m) | 40 | 45 |
| Port Size Inlet | 1″ BSPF inlet | 1″ BSPF inlet |
| Port Size Outlet | 1″ BSPM outlet | 1″ BSPF outlet |
| Powered | Electric | Electric |
| Taps | 5 | 6 |
| Warranty (months) | 24 | 24 |
| Volts | 240 | 240 |
| Watts | 450 | 600 |
